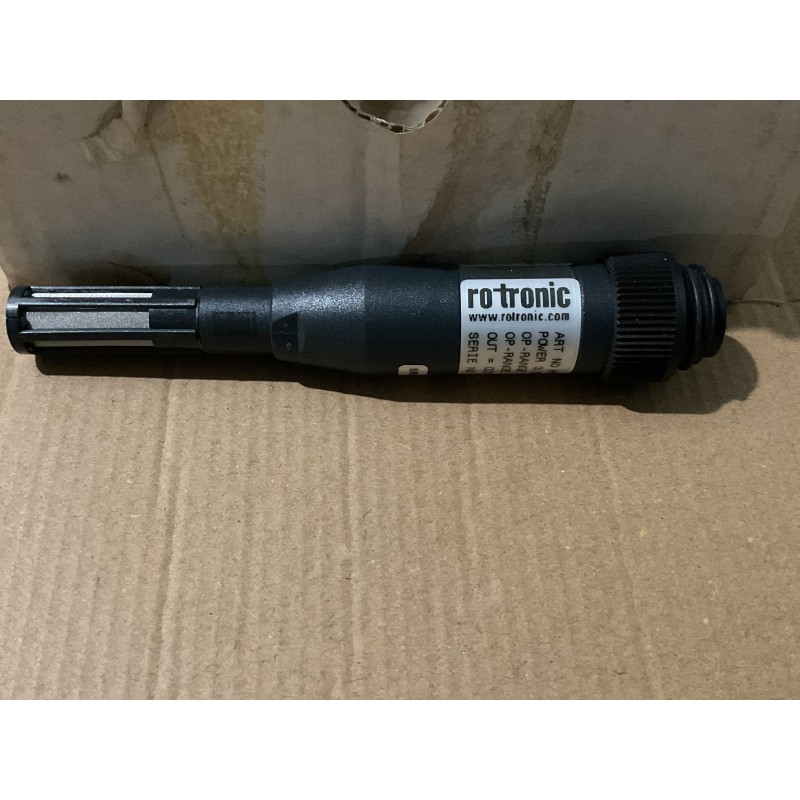

ROTRONIC HygroClip IW

The HygroClip IW probe by ROTRONIC is engineered for accurate measurement of relative humidity and temperature in wall-mounted installations. It features a robust stainless steel probe with dimensions of Ø15 x 150 mm, ensuring durability and longevity in demanding conditions. The probe operates over a temperature range of -50 to +200 °C and a humidity range of 0 to 100% RH, making it suitable for a wide array of applications. With an accuracy of ±1.0% RH and ±0.3 K at 23 °C, it provides precise data essential for critical processes. The HygroClip IW is compatible with ROTRONIC's HygroFlex transmitters, facilitating seamless integration into existing monitoring systems. Its IP66-rated housing offers excellent protection against dust and water ingress, ensuring reliable performance in challenging environments.

Features:

• Measurement Ranges:
  • Humidity: 0 to 100% RH
  • Temperature: -50 to +200 °C
• Accuracy at 23 °C:
  • Humidity: ±1.0% RH
  • Temperature: ±0.3 K
• Probe Dimensions: Ø15 x 150 mm
• Housing Material: Nickel-chromium steel (V4A/AISI 316/1.440)
• Protection Rating: IP66
• Power Supply: 15 VDC via HygroFlex transmitter
• Output Signal: Digital output of %RH and °C
• Operating Conditions:
  • Electronics: -40 to +40 °C
  • Probe: -50 to +200 °C
• Sensor Types:
  • Humidity: Hygromer IN-1
  • Temperature: Pt100 1/3 DIN Class B
• Long-Term Stability: <1% RH per year
• Filter Protection: Probe filter made of nickel-plated brass
• Calibration/Adjustment: Via HW4 software
• Compliance: Intrinsically safe with ATEX and FM approvals
