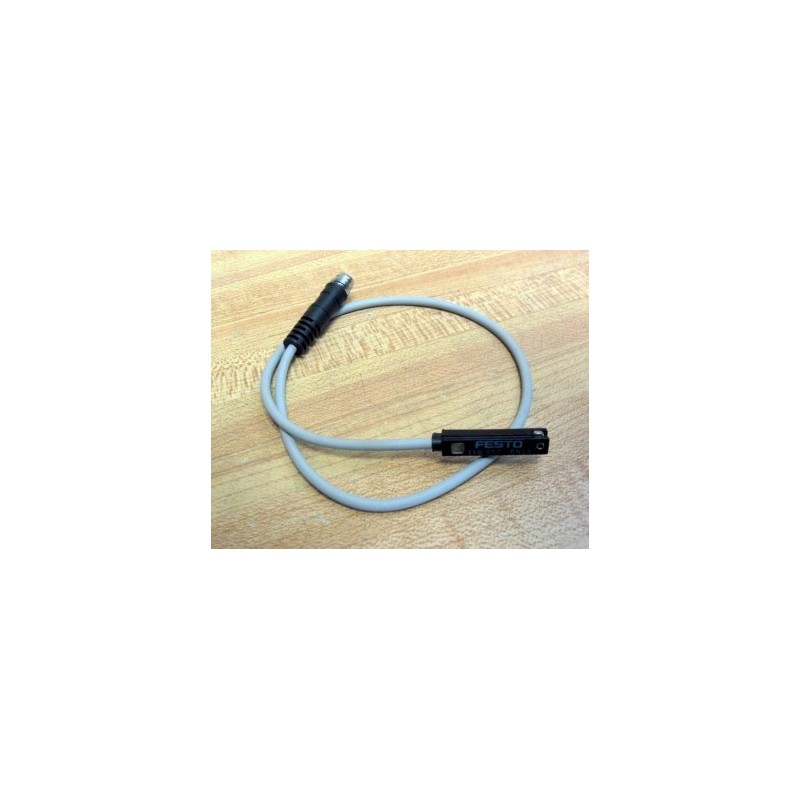

Festo SME-8-K-LED-24 Proximity Sensor

The Festo SME-8-K-LED-24 proximity sensor is engineered for integration into T-slots, offering a compact and efficient solution for position detection. It uses a magnetic Reed contact for position sensing and operates within an ambient temperature range of -40°C to 60°C. The sensor features a normally open (NO) bipolar contact output, handling output currents up to 500 mA. It includes a yellow LED for switching status indication, ensuring straightforward monitoring. The connection cable is 2.5 meters long, coated with durable TPE-U (PUR), suitable for demanding industrial environments.

Features:

• Design: T-slot compatibility.
• Sensing Principle: Magnetic Reed contact.
• Ambient Temperature Range: -40°C to 60°C.
• Switching Output: Bipolar contact, normally open (NO).
• Max Output Current: 500 mA.
• Max Switching Capacity: AC: 10 VA; DC: 10 W.
• Max Switching Frequency: 800 Hz.
• Status Indication: Yellow LED.
• Cable Length: 2.5 meters.
• Cable Material: TPE-U (PUR).
• Protection Class: IP65, IP67.
