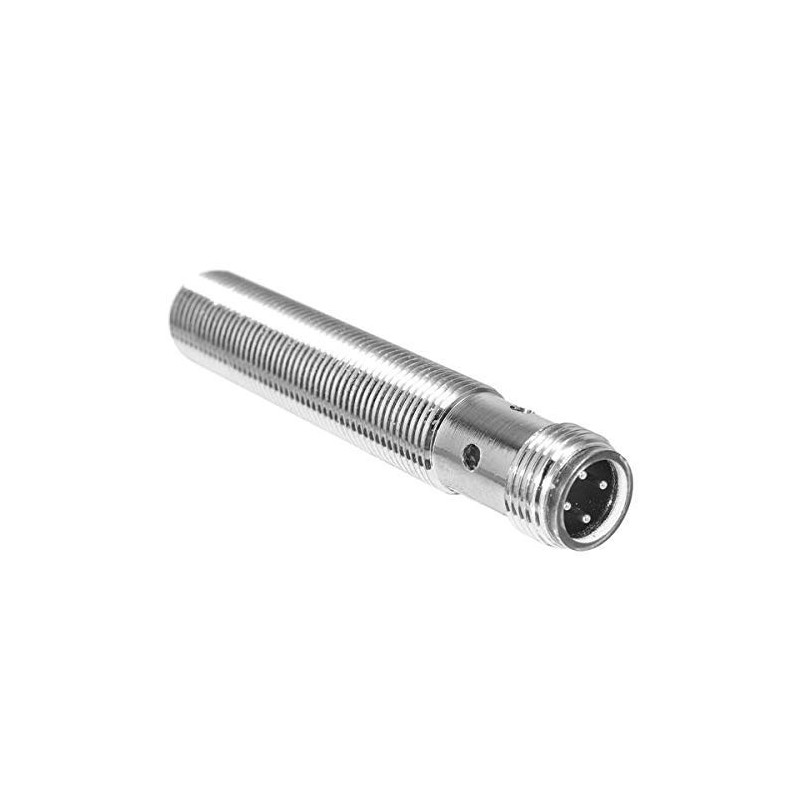

Pepperl+Fuchs NBB2-12GM50-E2-V1 Inductive Sensor

The NBB2-12GM50-E2-V1 is part of Pepperl+Fuchs' extensive line of inductive sensors, known for their reliability and precision in detecting metallic objects without direct contact. Housed in a durable M12 x 1 cylindrical brass casing with a white bronze coating, this sensor is designed for flush mounting, allowing seamless integration into equipment with minimal protrusion. It features a 2 mm rated operating distance and utilizes a PNP output configuration with a normally open (NO) switching function. The sensor is equipped with a multihole yellow LED for clear indication of its switching state. With an extended operating temperature range of -40 to +85 °C (-40 to +185 °F) and a high switching frequency of up to 3,500 Hz, it is well-suited for demanding industrial environments. The device offers reverse polarity and short-circuit protection, ensuring safe and reliable operation. Connection is facilitated through a standard M12 x 1, 4-pin connector, simplifying installation and maintenance.

Features:

• Cylindrical M12 x 1 design for flush installation.
• 2 mm rated operating distance.
• PNP output with normally open (NO) switching function.
• Operating voltage range: 5 to 36 V DC.
• High switching frequency up to 3,500 Hz.
• Extended operating temperature range: -40 to +85 °C (-40 to +185 °F).
• Robust brass housing with white bronze coating.
• Multihole yellow LED for switching state indication.
• Reverse polarity and short-circuit protection.
• Standard M12 x 1, 4-pin connector for easy installation.
