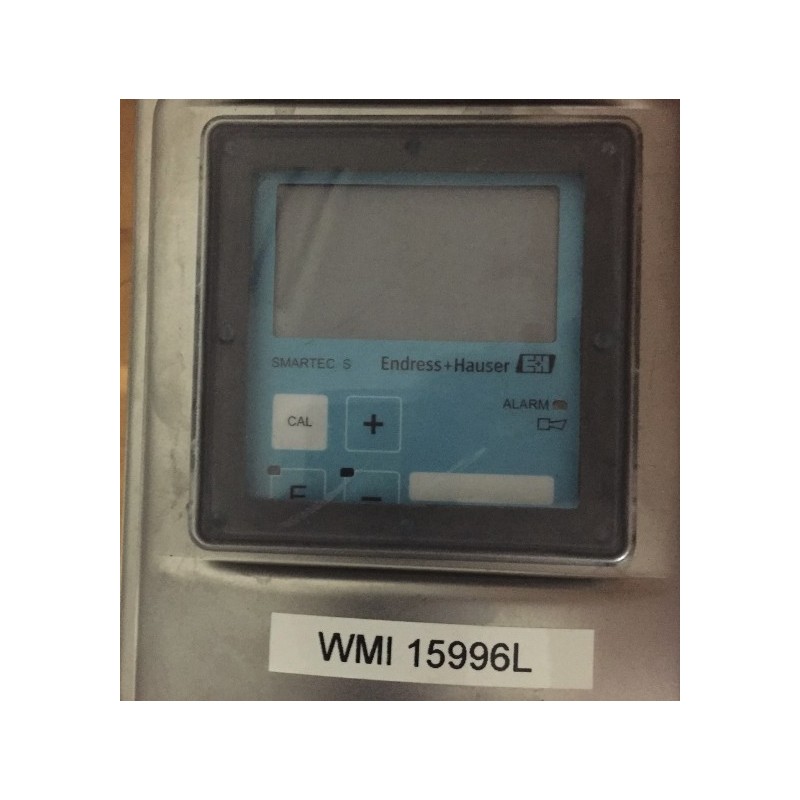

Endress+Hauser Smartec-S CLD134-PVA438HA1

The Smartec CLD134-PVA438HA1 combines a transmitter and sensor in a single, compact, and hygienic design. Constructed with food-grade virgin PEEK material, it meets stringent hygienic and sterile requirements, preventing contamination and ensuring compliance with industry standards. The system is suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP) procedures, withstanding temperatures up to 150 °C (302 °F) for a maximum of 60 minutes. Its encapsulated, jointless design enhances durability and reliability in demanding environments.

Features:

• Hygienic Design: Made from food-grade virgin PEEK, ensuring compliance with hygienic standards.
• Temperature Resistance: Operates up to 125 °C (257 °F); suitable for sterilization up to 150 °C (302 °F) for max. 60 minutes.
• Pressure Resistance: Withstands process pressures up to 12 bar (174 psi) at 90 °C (194 °F).
• Compact Integration: Combines transmitter and sensor for easy installation and minimal footprint.
• Interference-Free Measurement: Ensures accurate conductivity readings without external disturbances.
• Suitable for CIP/SIP: Designed to endure rigorous cleaning and sterilization processes.

Applications:

• Phase Separation: Differentiating between product and water or between different product mixtures in pipelines.
• CIP Process Control: Monitoring cleaning processes in return lines to ensure effectiveness.
• Concentration Control: Managing the concentration of cleaning agents during CIP solution preparation.
• Product Monitoring: Ensuring product quality in pipelines, bottling plants, and during quality assurance procedures.
• Leakage Detection: Identifying leaks in process systems to maintain operational integrity.
