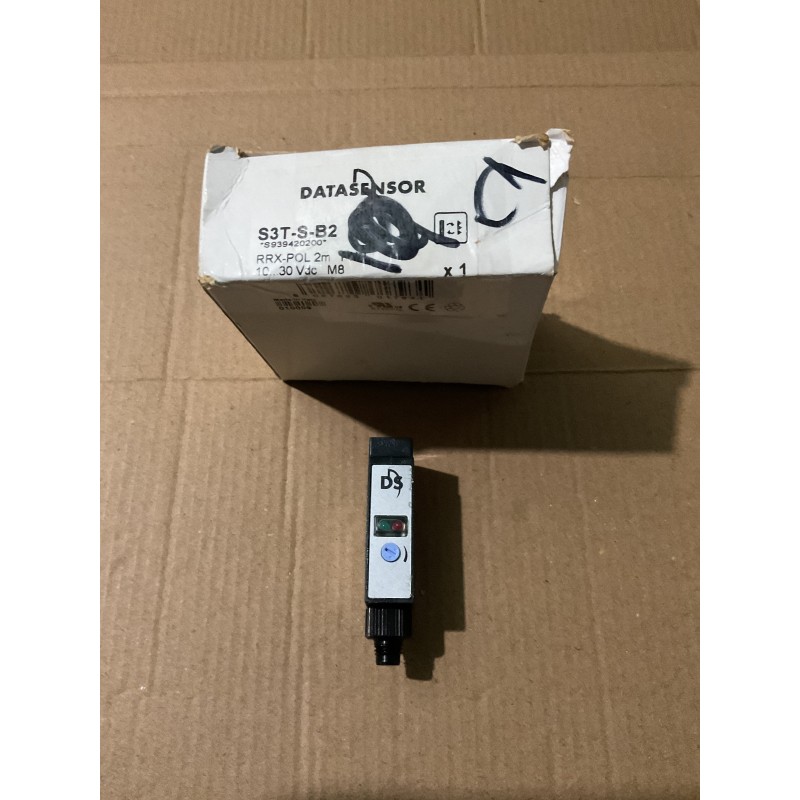

The S3T-S-B2 sensor operates using a polarized retro-reflective sensing method, effectively detecting objects by reflecting light off a reflector. It features a red LED light source with a wavelength of 660 nm, ensuring accurate detection of shiny or reflective surfaces. The sensor offers a sensing range of 0.1 to 2 meters when used with a standard reflector like the R2 model. Equipped with a sensitivity adjustment trimmer and stability LED indicator, it allows for easy setup and reliable performance. The sensor provides a PNP (sourcing) output and is designed with an M8 4-pole connector for straightforward electrical connection. Its IP66-rated ABS housing ensures durability and protection against dust and water, making it suitable for various industrial environments.
Features:
- Sensing Method: Polarized retro-reflective
- Light Source: Red LED, 660 nm
- Sensing Range: 0.1 to 2 meters (with R2 reflector)
- Sensitivity Adjustment: Trimmer
- Indicators: Red output LED, green stability LED
- Output Type: PNP (sourcing)
- Connection: M8 4-pole connector
- Housing Material: ABS
- Protection Rating: IP66
- Operating Voltage: 10 to 30 V DC
- Operating Temperature: -25 to +55°C
