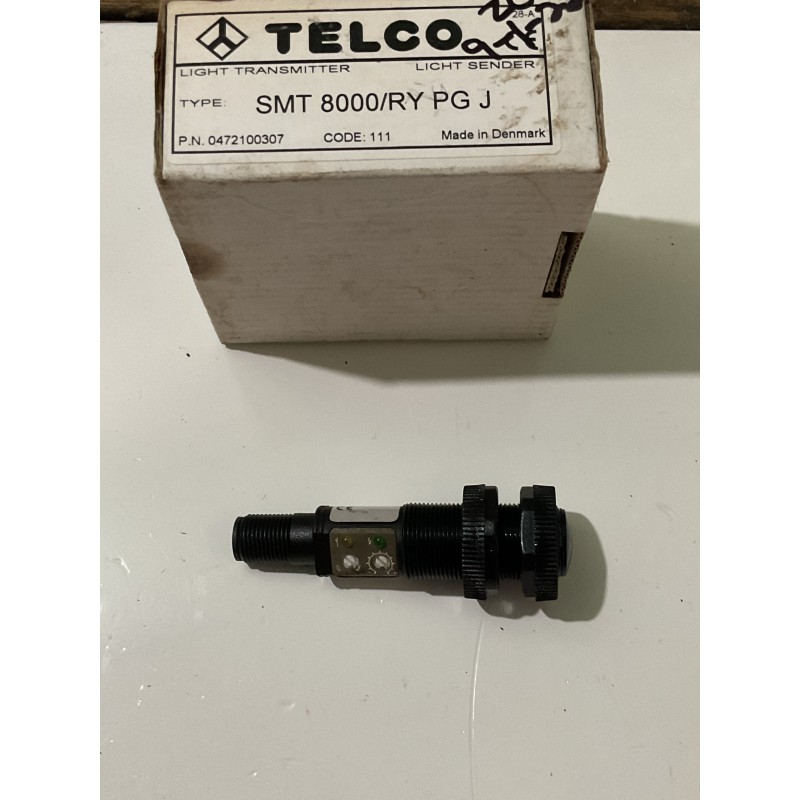

Telco SMT 8000 PG J Photoelectric Sensor

The SMT 8000 PG J operates as a transmitter in a thru-beam configuration, emitting an infrared light beam with a wavelength of 880 nm. It requires a supply voltage between 10 and 30 V DC and features a test input for system diagnostics or multiplexing applications. The sensor is housed in a robust M18 x 1 plastic enclosure, ensuring durability in industrial environments. It is equipped with a 4-pin M12 plug for easy connectivity and has a sensing range of up to 20 meters when used with a compatible receiver. The SMT 8000 PG J is designed to withstand challenging conditions, with an operating temperature range from -20 to +60 °C and an IP67 sealing class, indicating high resistance to dust and water ingress.

Features:

• Thru-beam sensing with a range up to 20 meters
• Infrared light source (880 nm)
• Test input for diagnostics
• Durable plastic housing (M18 x 1)
• 4-pin M12 plug connection
• IP67 rated for dust and water protection
• Operating temperature: -20 to +60 °C
