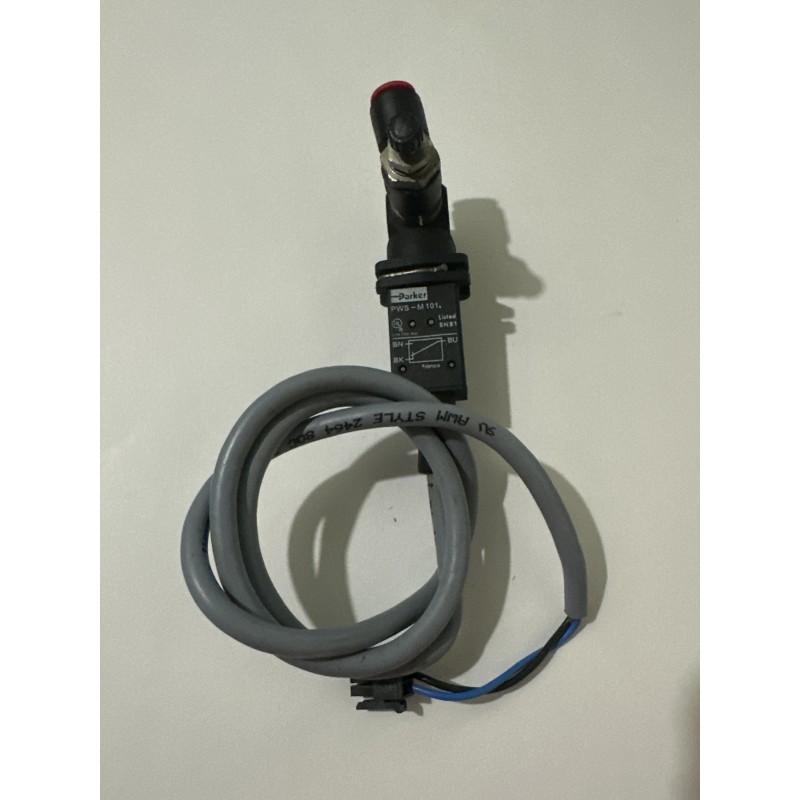

Parker PWS-M101 Pressure Sensor

The PWS-M101 pressure sensor is engineered to monitor pressure levels within pneumatic circuits, activating an electrical signal when a predefined pressure threshold is reached. This functionality is crucial for applications requiring precise pressure monitoring and control. The sensor features a three-wire electrical connection and is equipped with a 2-meter cable for flexible installation. It operates effectively within a pressure range of 0 to 10 bar and a temperature range of -15°C to +60°C, ensuring reliable performance in various industrial environments. The sensor is designed to be used in conjunction with compatible banjo fittings, which are sold separately.

Features:

• Output Function: Electrical signal with three-wire connection
• Output Characteristics: Normally Closed (NC) / Normally Open (NO) contact
• Electrical Specifications:
  • Voltage: 12 to 230 V AC / 10 VA
  • Current: 12 to 48 V DC / 5 W
• Operating Pressure Range: 0 to 10 bar
• Operating Temperature Range: -15°C to +60°C
• Connection: 3-wire cable, 2 meters in length
• Protection Level: IP40
• Mounting: Designed for direct installation on cylinders using compatible banjo fittings (sold separately)
