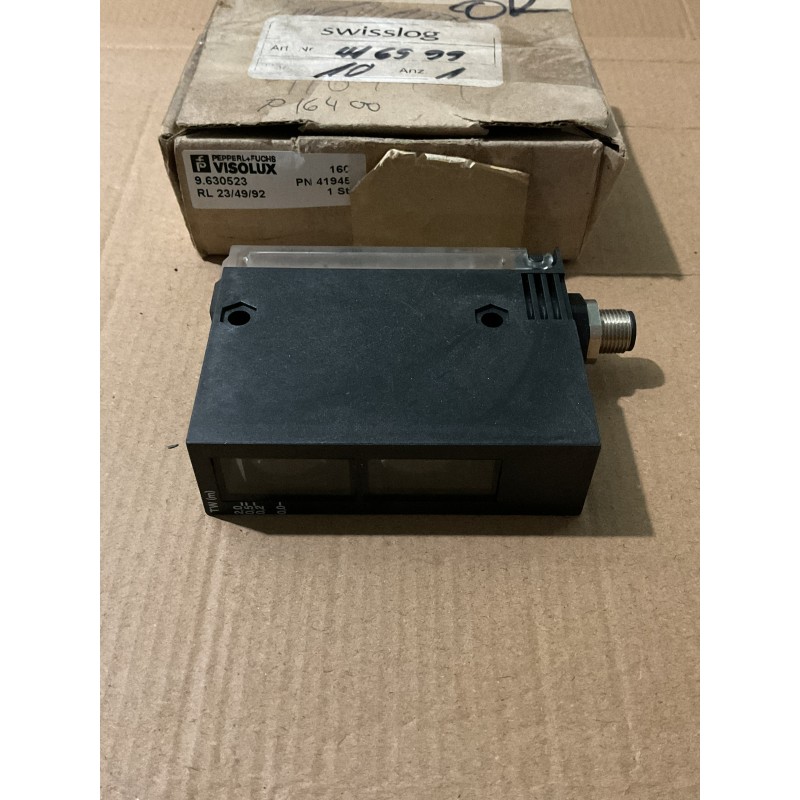

Pepperl+Fuchs RL23-8-H-2000-IR/49/92 Sensor

The RL23-8-H-2000-IR/49/92 sensor utilizes modulated infrared light to detect objects while effectively suppressing background interference. This feature makes it suitable for applications requiring reliable object detection in complex settings. The sensor offers adjustable background suppression, allowing customization of the detection range to suit specific requirements. It includes a programming switch for selecting light-on or dark-on operation modes and a sensing range adjuster for precise configuration. The sensor's sturdy plastic housing and scratch-resistant glass optical surface provide resilience against harsh industrial conditions.

Features:

• Detection Range: 50 to 2000 mm
• Light Source: Infrared LED (IRED)
• Light Type: Modulated infrared light
• Black/White Difference (6%/90%): < 20%
• Light Spot Diameter: 50 mm at 2000 mm sensor range
• Angle of Divergence: 1.5°
• Operating Voltage: 10 to 30 V DC
• Switching Output: PNP and NPN, short-circuit protected, reverse polarity protected
• Switching Frequency: 70 Hz
• Response Time: 5 ms
• Function Indicator: Yellow LED (lights up when the receiver is lit)
• Housing Material: Terluran® GV15 (plastic)
• Optical Surface Material: Scratch-resistant glass
• Connection: 4-pin, M12 x 1 connector
• Protection Class: IP65
• Operating Temperature: -20 to 60 °C (-4 to 140 °F)
• Dimensions (W x H x D): 26.8 mm x 91 mm x 67.6 mm
• Weight: Approximately 180 g
