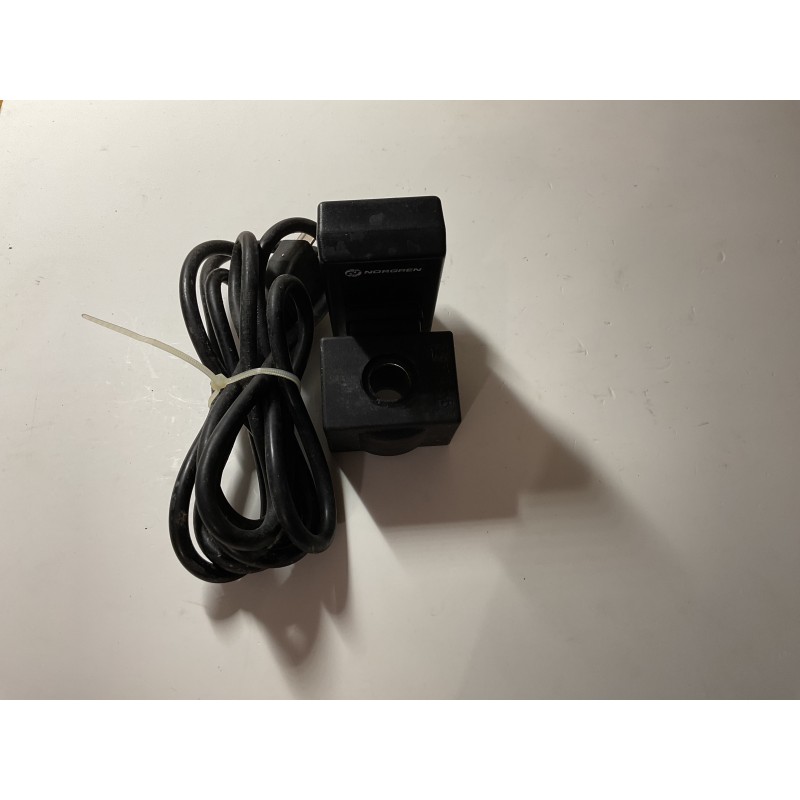

NORGREN TM35 17-020-300 Automatic Drain Valve

The NORGREN 17-020-300 is an electronic drain valve engineered to automatically discharge condensate from air compressors, dryers, separators, and filters. It features dual timers allowing full adjustment of both the drain interval (0.5 to 45 minutes) and the valve actuation duration (0.5 to 10 seconds), providing flexibility to meet various system requirements. The valve is constructed with a stainless steel body and includes a 1/4" NPT female port. It operates at a maximum working pressure of 300 psi and is suitable for ambient temperatures ranging from 32°F to 130°F. The unit is CE marked and has a NEMA 4 electrical rating, ensuring compliance with industry standards.

Features:

• Adjustable Drain Interval: 0.5 to 45 minutes.
• Adjustable Valve Actuation Duration: 0.5 to 10 seconds.
• Port Size: 1/4" NPT female.
• Maximum Working Pressure: 300 psi.
• Operating Temperature Range: 32°F to 130°F.
• Electrical Rating: NEMA 4, CE marked.
• Construction Material: Stainless steel body.
• Indicators: Two indicator lights for visual inspection of power on and valve actuation.
• Manual Test Switch: Allows for manual operation testing.
• Solid State Electronics: Ensures reliable performance.
