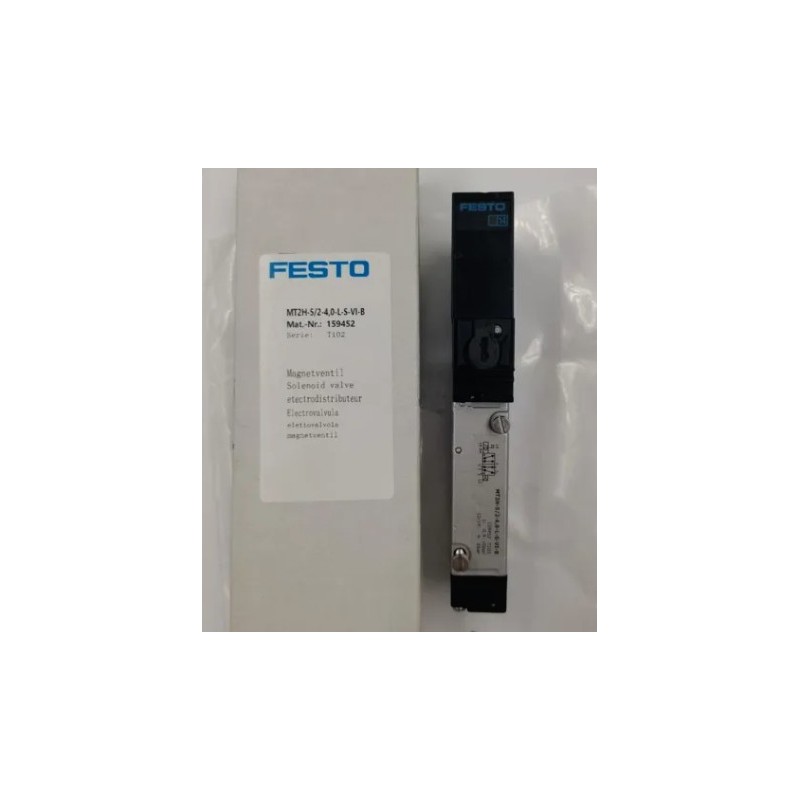

Festo MT2H-5/2-4,0-L-S-VI-B 5/2-Way Monostable Solenoid Valve

MT2H-5/2-4,0-L-S-VI-B
Festo

The Festo MT2H-5/2-4,0-L-S-VI-B is an electrically actuated 5/2-way monostable solenoid valve, designed for integration into valve terminals, offering a standard nominal flow rate of 700 l/min and operating pressures ranging from -0.9 to 10 bar.

$70.00
Quantity
4 Items

Ask about the product on WhatsApp
Make an Offer

Your Offer is sent.

Your Offer is accepted, please check your inbox.

Festo MT2H-5/2-4,0-L-S-VI-B 5/2-Way Monostable Solenoid Valve
  • Use dot instead of comma

Loading

  Security policy

We offer many payment options to make your purchasing experience secure, easy and flexible.

  Delivery policy

In-stock products: Same day shipping Mon. through Fri. by 6:00 pm EST.

  Return policy

90-days money back guarantee

Description

The Festo MT2H-5/2-4,0-L-S-VI-B is a 5/2-way monostable solenoid valve with electrical actuation, tailored for use in valve terminals. It features a piston slide design and utilizes an air spring for resetting. The valve provides a standard nominal flow rate of 700 l/min and operates efficiently within a pressure range of -0.9 to 10 bar. It has a nominal size of 5 mm and a grid dimension of 18 mm. The valve supports a reversible flow direction and includes a manual override with detenting accessories. Please note, this model was discontinued in 2017; for alternative products, consult Festo's Support Portal.

Features:

  • Valve Function: 5/2-way, monostable
  • Actuation Type: Electrical
  • Standard Nominal Flow Rate: 700 l/min
  • Operating Pressure: -0.9 to 10 bar
  • Design: Piston slide
  • Reset Type: Air spring
  • Protection Class: IP65
  • Nominal Size: 5 mm
  • Grid Dimension: 18 mm
  • Exhaust-Air Function: Throttleable
  • Sealing Principle: Soft
  • Mounting Position: Any
  • Manual Override: With accessories, detenting
  • Type of Piloting: Piloted
  • Pilot Air Supply: External
  • Flow Direction: Reversible
  • Freedom from Overlap: Yes
  • Pilot Pressure: 4 to 6 bar
  • Switching Time Off: 22 ms
Product Details
MT2H-5/2-4,0-L-S-VI-B
159452
4 Items

Data sheet

Condition
New
