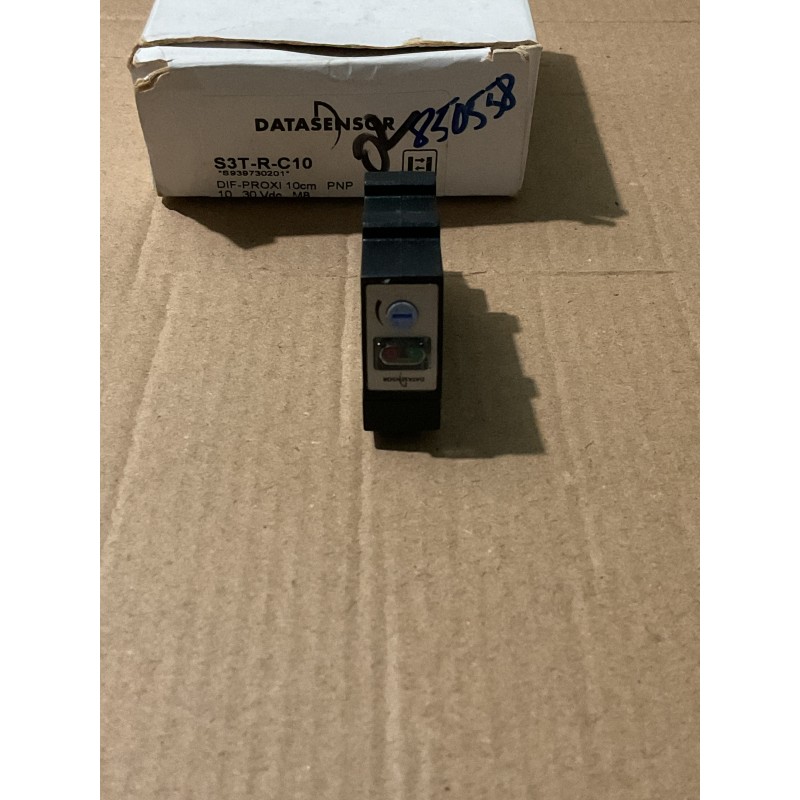

The S3T-R-C10 is part of the S3 series of miniature photoelectric sensors, known for their compact dimensions and reliable performance. This sensor utilizes an infrared LED with a wavelength of 880 nm to detect objects within a maximum range of 100 mm. It includes a sensitivity adjustment trimmer, allowing users to fine-tune the sensor's responsiveness to specific application requirements. The sensor is equipped with a PNP output and features an M8 4-pole connector for easy integration into various industrial systems. Its plastic housing ensures durability while maintaining a lightweight profile, and it boasts an IP66 protection rating, making it suitable for use in challenging industrial environments.
Features:
- Sensing Method: Diffuse proximity
- Light Source: Infrared LED, 880 nm
- Sensing Range: Up to 100 mm
- Sensitivity Adjustment: Trimmer
- Output Type: PNP
- Connection: M8 4-pole connector
- Housing Material: Plastic
- Protection Rating: IP66
- Operating Voltage: 10 to 30 V DC
- Current Consumption: 30 mA max.
- Response Time: 1 ms max.
- Operating Temperature Range: -25°C to +55°C
