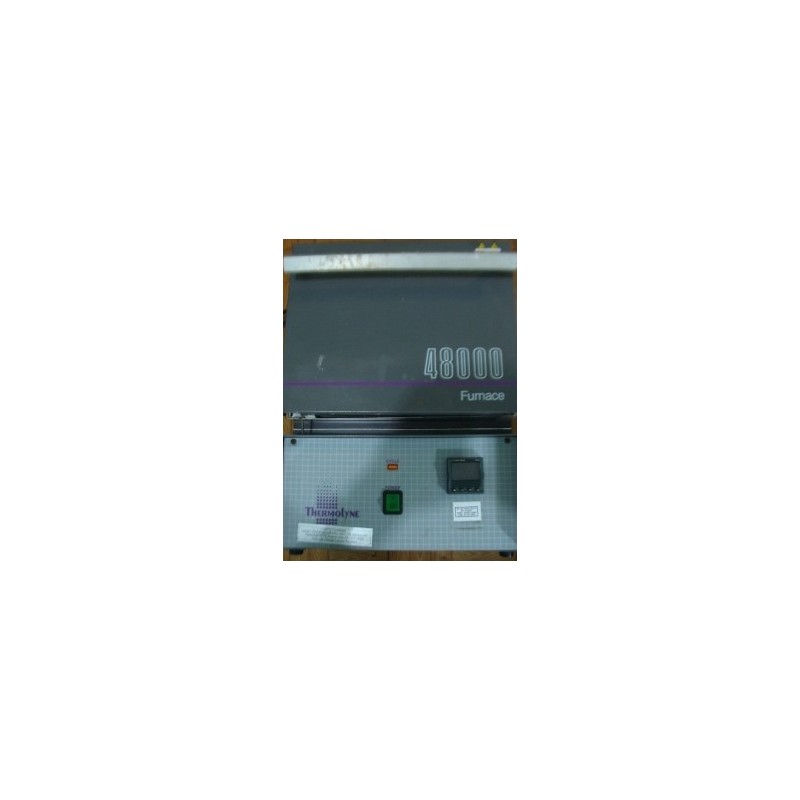

Thermo Scientific Thermolyne F48025 Muffle Furnace

The Thermo Scientific Thermolyne F48025, part of the 48000 series, is ideal for a wide range of laboratory applications, including gravimetric analysis, sintering, quantitative analysis, and heat treatments. Its open-coil heating elements on the chamber sides provide rapid and uniform heating with minimal temperature gradients. The chamber is surrounded by thermally efficient ceramic insulation, maximizing energy efficiency.

The furnace is equipped with a safety interlock switch that cuts power to the heating elements when the door is opened, ensuring safe operation. It operates with both programmable and manual controls, offering eight stored program segments for flexible operation.

Features:

• Chamber Capacity: 5.8 liters (0.2 cubic feet)
• Maximum Temperature: 1200°C
• Controller: Digital programmable controller with eight stored program segments
• Heating Elements: Open-coil design for fast and even heating
• Insulation: Energy-efficient ceramic insulation
• Safety Features: Door safety switch that shuts off power when opened
• Power Requirements: 120V, 50/60 Hz
• Power Consumption: 1800W
