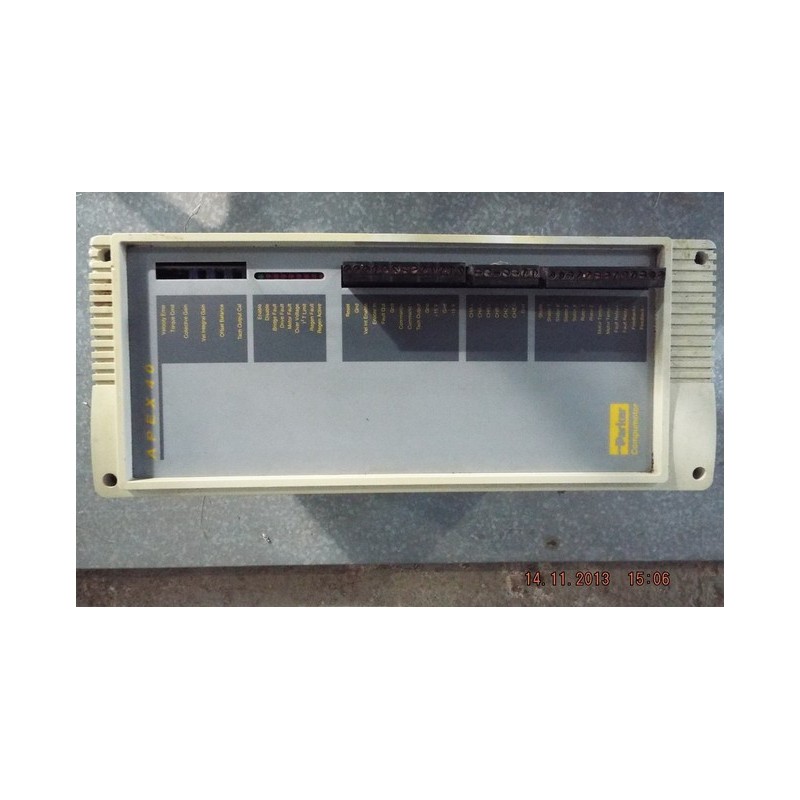

The APEX40 is part of Parker Compumotor's APEX series, known for high performance and reliability in analog servo drive systems. It operates in torque or velocity modes, accepting a ±10V standard command input. It utilizes sinusoidal commutation to ensure smooth, vibration-free motion and supports brushless resolver feedback. Additionally, it provides an incremental encoder output for analog servo controllers. The APEX40 is designed for easy installation, featuring removable connectors for all signals and simple tuning adjustments, making it ideal for a wide range of industrial automation applications.
Features:
- Operating Modes: Torque and velocity
- Command Input: ±10V standard
- Commutation: Sinusoidal for smooth motion
- Feedback: Brushless resolver
- Encoder Output: Incremental for analog controllers
- Speed Loop Tuning: Proportional and integral gain adjustments
- Integrated Protections: Over-temperature, over-voltage, and short circuit protection
- Power Supply: 120–240VAC, single-phase or three-phase, depending on the model
- Diagnostics: Nine LED indicators
- Connectivity: Removable connectors for simplified installation
