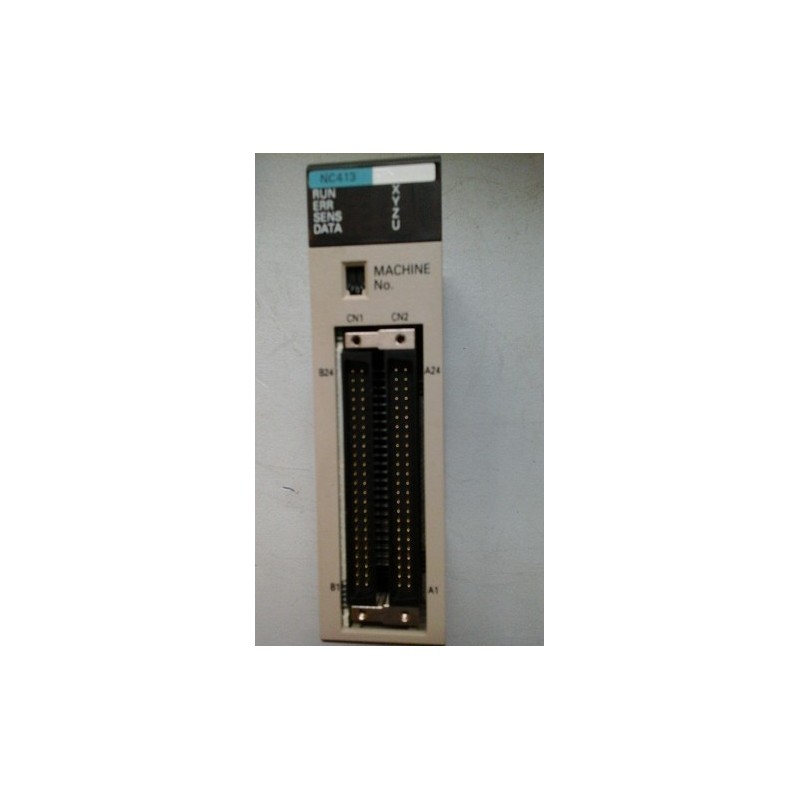

The C200HW-NC413 is engineered to deliver high-performance positioning control for servo and stepper motors. It supports both open-loop and closed-loop control systems, accommodating various motion control requirements. The unit offers multiple positioning methods, including direct operation and memory operation, allowing for flexible application in diverse industrial scenarios. With a compact design measuring 31 mm in width and 90 mm in height, it efficiently utilizes space within control panels. The PCU features versatile functions such as jogging, interrupt feeding, and S-curve acceleration/deceleration, enhancing its capability to manage complex motion profiles. Additionally, it provides easy integration with Omron's CX-Position support software, facilitating straightforward data input, editing, and monitoring.
Features:
- Control Axes: Up to 4 independent axes
- Positioning Methods: Direct operation and memory operation
- Acceleration/Deceleration Curves: Trapezoidal and S-curve
- Jogging Function: Allows manual operation at specified speeds
- Interrupt Feeding: High-speed processing of interrupt input signals for precise positioning
- Data Memory: Stores up to 100 positioning points per axis
- External Inputs: Supports origin proximity input, limit inputs, and emergency stop input
- Output Types: Available in open-collector and line-driver models
