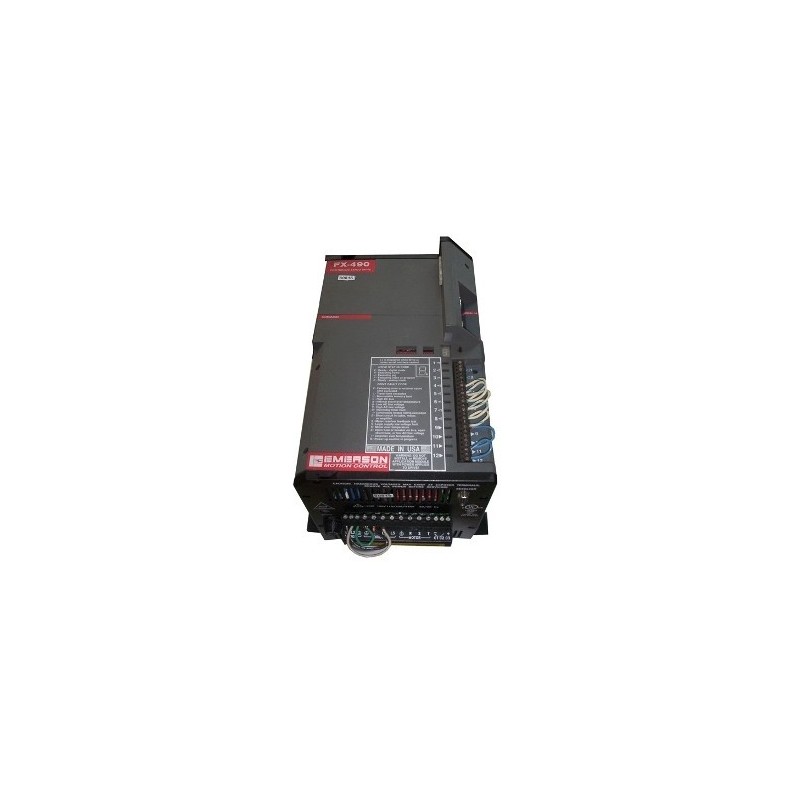

The Emerson FX-490 is part of the FX Series, renowned for integrating position control, I/O, feedback, servo amplification, and power supply into a single unit. This design simplifies installation and enhances system reliability by eliminating the need for external isolation transformers. The drive supports multiple control modes, including position control, digital pulse follower, and analog input, offering flexibility for various application requirements. Equipped with an LED display for operational diagnostics and auxiliary logic supply provisions, the FX-490 ensures efficient monitoring and maintenance. Its robust construction and high-performance capabilities make it suitable for tasks such as material handling, robotics, and precision manufacturing.
Features:
- Input Voltage: 90-264 VAC, 47-63 Hz
- Control Modes:
- Position Control
- Digital Pulse Follower
- Analog Input
- I/O Lines: 8 inputs and 4 outputs
- Motion Profiles: Linear or modified sine
- LED Display: For operational and diagnostic status
- Auxiliary Logic Supply: Provision available
- Noise Immunity: Designed to meet IEC801 standards
- Communication Ports: Two RS-423C ports, compatible with RS-232C/RS-422C signals
- Programming Methods:
- PCX Programming Software
- RS-423C Serial ASCII terminal
- T-21 Data Entry Terminal
- T-60 Operator Interface Terminal
