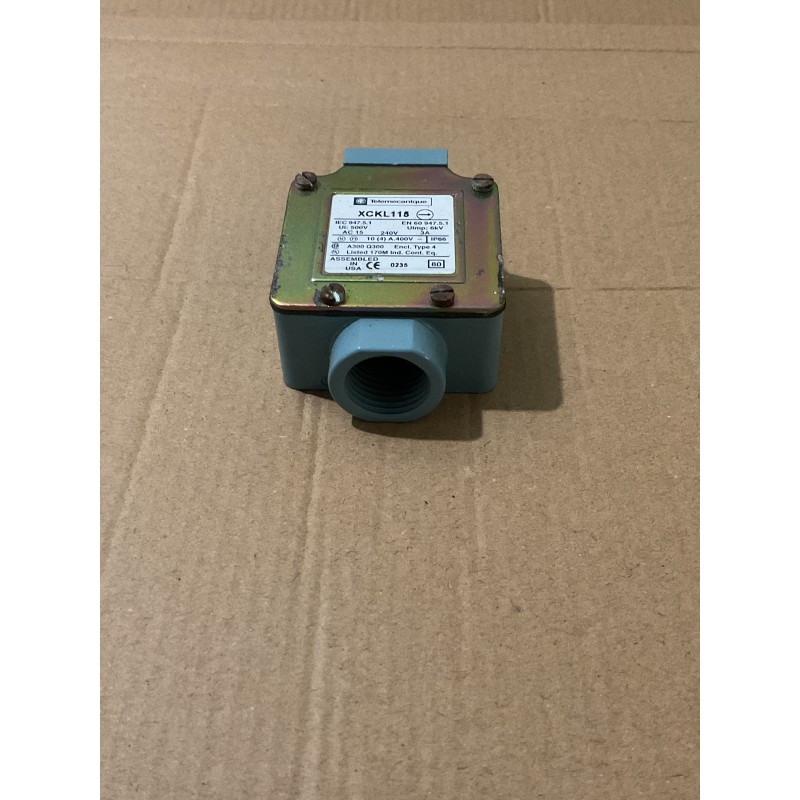

Telemecanique XCKL115 Limit Switch

The XCKL115 limit switch is engineered with a metal body (Zamak) and a rotary head equipped with a spring-return thermoplastic roller lever. This design allows for lateral approach actuation from two directions. The switch operates with a snap-action contact mechanism, providing quick and reliable switching between the NC and NO contacts. It includes a metal cable gland entry suitable for cable diameters ranging from 6 to 13.5 mm, facilitating secure electrical connections. The switch is rated for a conventional enclosed thermal current of 10 A AC and supports voltage ratings up to 240 V AC and 250 V DC. With an IP66 protection rating, it is well-suited for harsh industrial environments, offering resistance to dust and powerful water jets. The operating temperature range extends from -25°C to +70°C, accommodating a wide array of industrial conditions.

Features:

• Actuator Type: Spring-return thermoplastic roller lever
• Contact Configuration: 1 NC + 1 NO (snap action)
• Housing Material: Metal (Zamak)
• Cable Entry: Metal cable gland for 6 to 13.5 mm diameter cables
• Electrical Ratings:
  • Thermal Current (Ithe): 10 A AC
  • Voltage Rating: 240 V AC / 250 V DC
• Protection Rating: IP66
• Operating Temperature Range: -25°C to +70°C
• Mechanical Durability: 15 million operating cycles
• Electrical Durability: 5 million operating cycles (depending on load)
