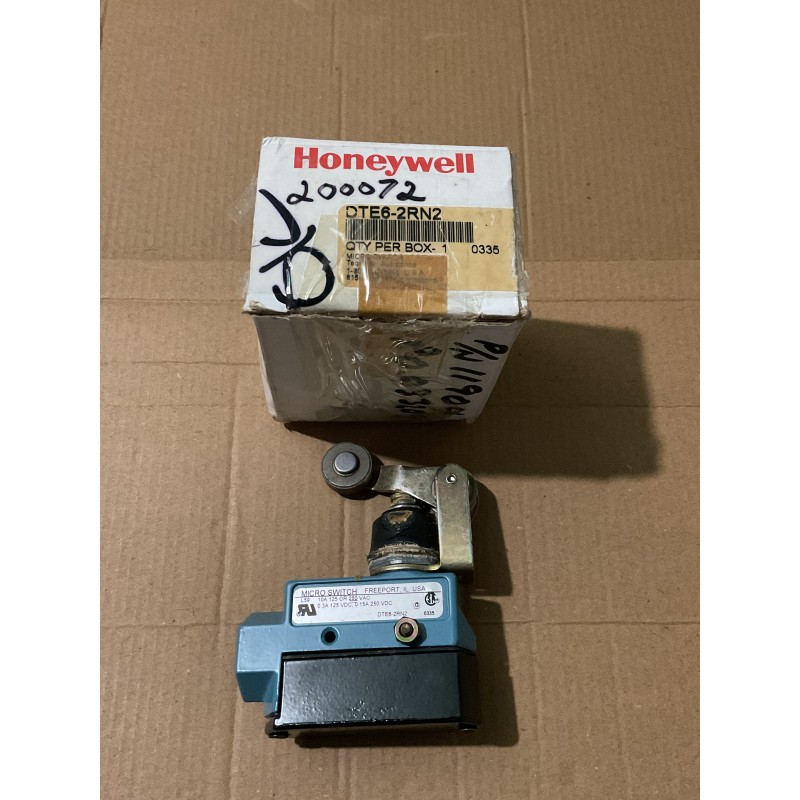

Honeywell DTE6-2RN2 Limit Switch

The DTE6-2RN2 limit switch is equipped with a top adjustable roller arm actuator, allowing for flexibility in various industrial setups. It features a Double Pole Double Throw (DPDT) contact configuration, providing two normally open (NO) and two normally closed (NC) contacts. The switch is rated for a maximum current of 10A at 250VAC and 0.3A at 250VDC, making it suitable for controlling electrical loads within these specifications. The housing is constructed from zinc die-cast material, ensuring durability and resistance to environmental factors. With an IP66 rating, the switch is protected against dust and powerful water jets, making it suitable for harsh industrial environments. The operating temperature range is from -32°C to +71°C, accommodating a wide range of operating conditions. The switch utilizes screw terminals for secure electrical connections and has a 0.5"-14NPT conduit entry for wiring.

Features:

• Actuator Type: Top adjustable roller arm
• Contact Configuration: DPDT (2 NO + 2 NC)
• Current Rating: 10A at 250VAC; 0.3A at 250VDC
• Housing Material: Zinc die-cast
• Ingress Protection: IP66
• Operating Temperature Range: -32°C to +71°C
• Termination Style: Screw terminals
• Conduit Entry: 0.5"-14NPT
