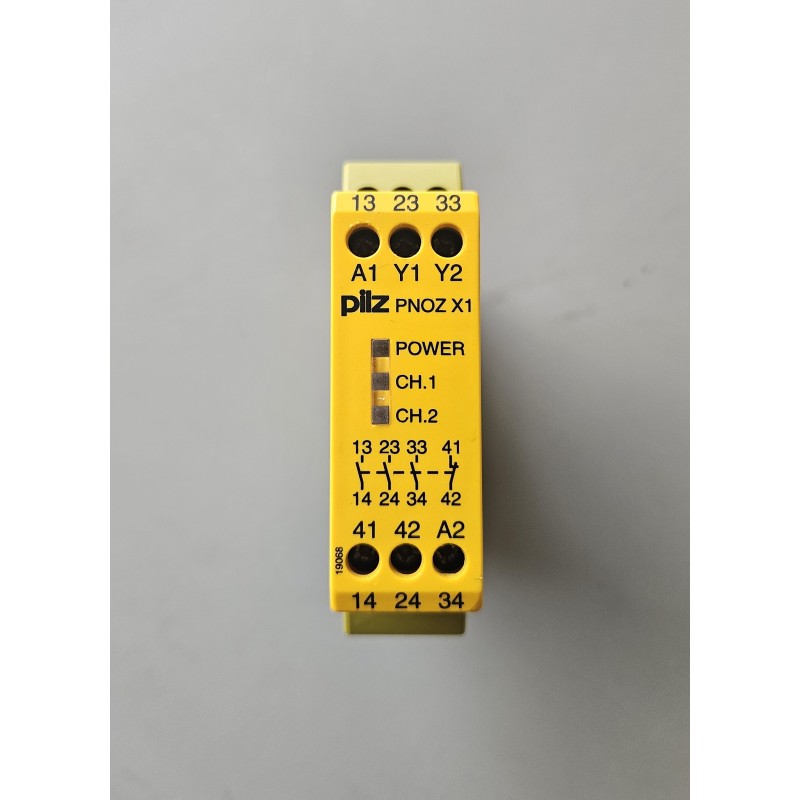

Pilz PNOZ X1 Safety Relay

The PNOZ X1 safety relay operates with a redundant design and built-in self-monitoring, maintaining its safety function even in the event of a component failure. It is suitable for single-channel applications and provides three normally open (NO) safety contacts and one normally closed (NC) auxiliary contact. The relay is compatible with both 24 V AC and 24 V DC power supplies, offering flexibility in various control systems. Its compact design allows for easy integration into control panels, and it meets international safety standards, including EN 60947-5-1 and EN 60204-1.

Features:

• Monitoring Functions: Designed for E-STOP pushbuttons and safety gates.
• Safety Contacts: Three NO safety contacts for reliable disconnection of safety circuits.
• Auxiliary Contact: One NC auxiliary contact for status monitoring.
• Redundant Design: Ensures safety functionality is maintained even if a component fails.
• Self-Monitoring: Automatically tests the correct opening and closing of safety function relays in each on-off cycle.
• Power Supply: Compatible with 24 V AC/DC, accommodating various control system requirements.
• Compact Dimensions: Width of 22.5 mm, height of 87 mm, and depth of 121 mm, facilitating space-saving installation.
• Standards Compliance: Meets EN 60947-5-1 and EN 60204-1 standards for safety-related applications.
