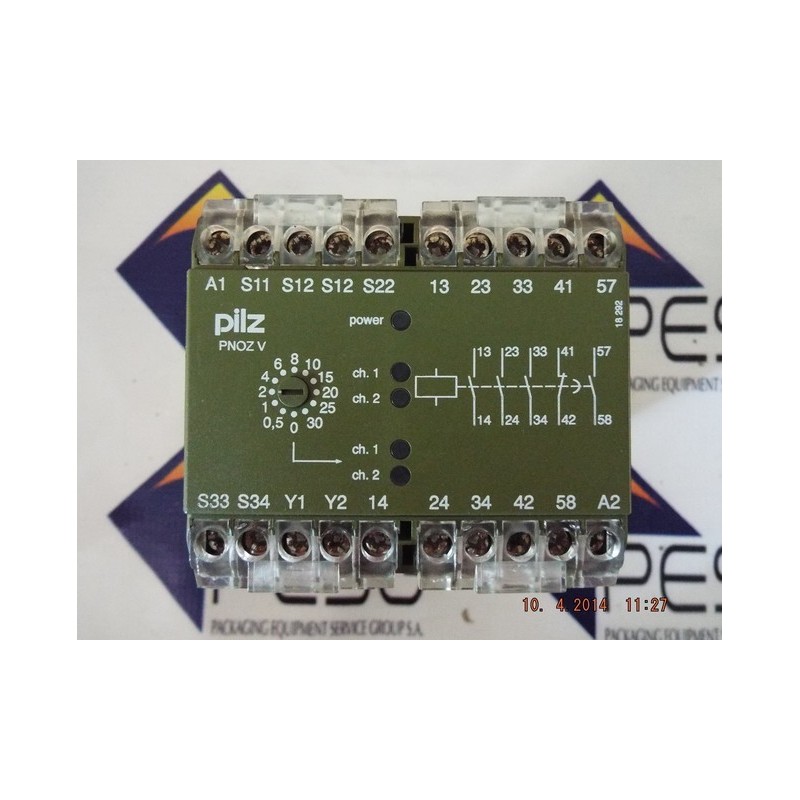

Pilz PNOZ V 30S Safety Relay

The PNOZ V 30S operates with a supply voltage of 24 VDC and features three normally open (NO) safety contacts, one normally closed (NC) auxiliary contact, and one normally open, time-delayed (NO t-d) contact. The time delay for the NO t-d contact can be set in 12 levels, ranging from 0.05 to 30 seconds, allowing for flexible response times based on specific application requirements. This relay is suitable for single or dual-channel wiring without detection of shorts across contacts and offers both automatic and manual start options. Its compact design facilitates easy integration into control panels, and it meets international safety standards, ensuring dependable performance in safeguarding machinery and personnel.

Features:

• Monitoring Functions: Designed for E-STOP functions, safety gates, and light barriers.
• Safety Contacts: Three NO safety contacts for reliable disconnection of safety circuits.
• Auxiliary Contact: One NC auxiliary contact for status monitoring.
• Time-Delayed Contact: One NO t-d contact with adjustable delay from 0.05 to 30 seconds.
• Power Supply: Operates on 24 VDC, compatible with standard industrial power systems.
• Start Options: Supports both automatic and manual start configurations.
• Mounting: Designed for easy installation with integrated screw terminals.
