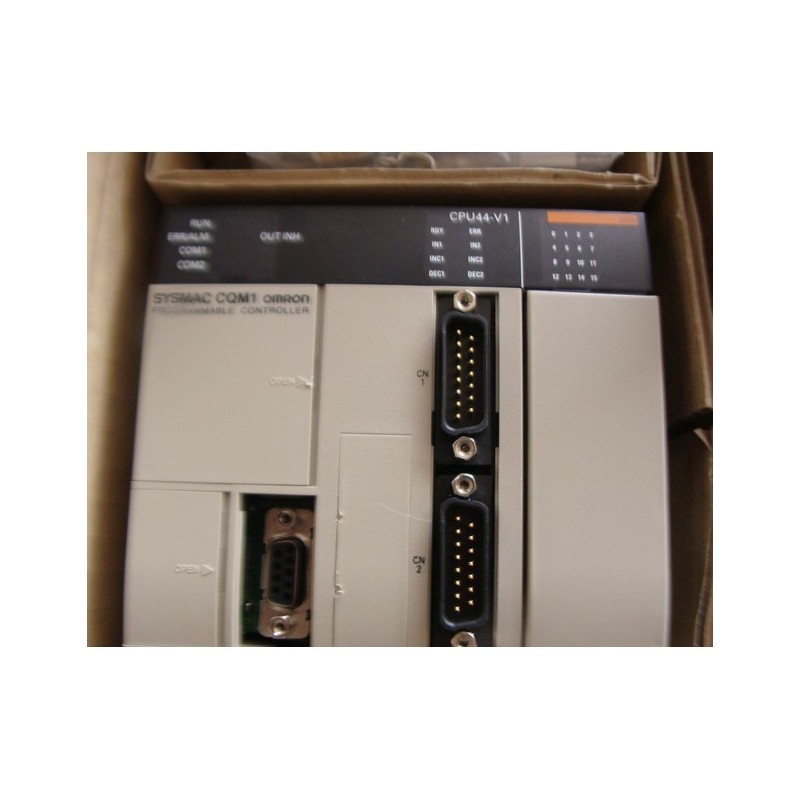

Omron CQM1-CPU44-EV1 PLC

The CQM1-CPU44-EV1 is part of Omron's versatile CQM1 series, offering a flexible solution for small to medium-sized control applications. This CPU unit includes two dedicated ports for receiving gray codes from absolute-type rotary encoders, enabling absolute-type high-speed counter interrupts. It supports a maximum of 256 I/O points and provides a program capacity of 7.2K words, with data memory capacity of 6K words. The unit operates with a processing speed significantly faster than previous models, enhancing system performance.

Features:

• Maximum I/O Points: 256 points
• Program Capacity: 7.2K words
• Data Memory Capacity: 6K words
• Built-in Absolute Encoder Interfaces: Two ports for gray code input
• High-Speed Counting: Supports single-phase pulses up to 50 kHz and two-phase pulses up to 25 kHz
• Communication Ports: Includes a peripheral port and an RS-232C port for connecting to external devices
• Interrupt Functions: Supports input interrupts, scheduled interrupts, and high-speed counter interrupts
• Compact Design: Modular structure allows easy expansion without the need for a backplane

Applications:

• Industrial Automation: Suitable for controlling machinery and processes in manufacturing environments
• Position Control Systems: Ideal for applications requiring precise position tracking using absolute encoders
• High-Speed Counting: Applicable in systems that require rapid counting and processing of input signals
