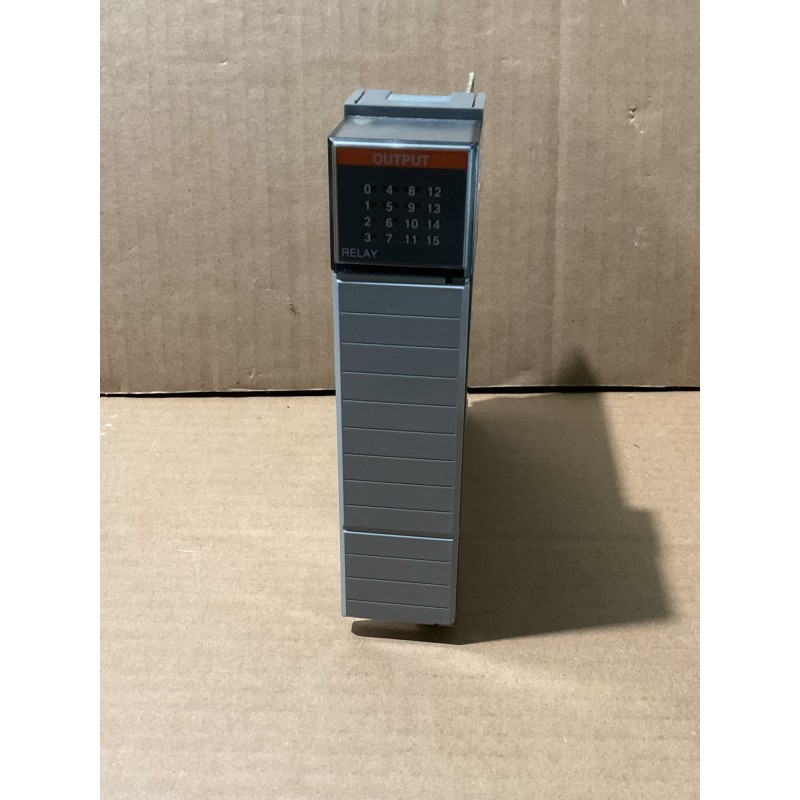

Allen-Bradley 1746-OW16 SER C Relay Output Module

The 1746-OW16 module features 16 normally open relay contact outputs, organized into two groups of eight, each with a separate common terminal. This configuration allows for mixed voltage applications, enabling one group to handle AC loads and the other DC loads. The module supports operating voltages ranging from 5 to 125V DC and 5 to 265V AC, providing flexibility for diverse control requirements. It is equipped with LED indicators for each output, offering clear visual status updates. Designed for seamless integration into the SLC 500 system, the 1746-OW16 ensures reliable performance in various industrial environments.

Features:

• Number of Outputs: 16 normally open relay contacts
• Output Grouping: Two groups of eight outputs, each with a separate common
• Operating Voltage Range: 5...125V DC or 5...265V AC
• Maximum Output Current: 2 A per channel at 24V DC; 1 A per channel at 230V AC
• Backplane Current Load: 170 mA at 5V DC; 180 mA at 24V DC
• Indicators: 16 LEDs indicating output status
• Isolation Voltage: 1500V AC (rms) between field side and logic side
• Environmental Conditions: Operating temperature 0...60°C; Storage temperature -40...85°C
• Certifications: UL Listed, CSA Certified, CE Marked
