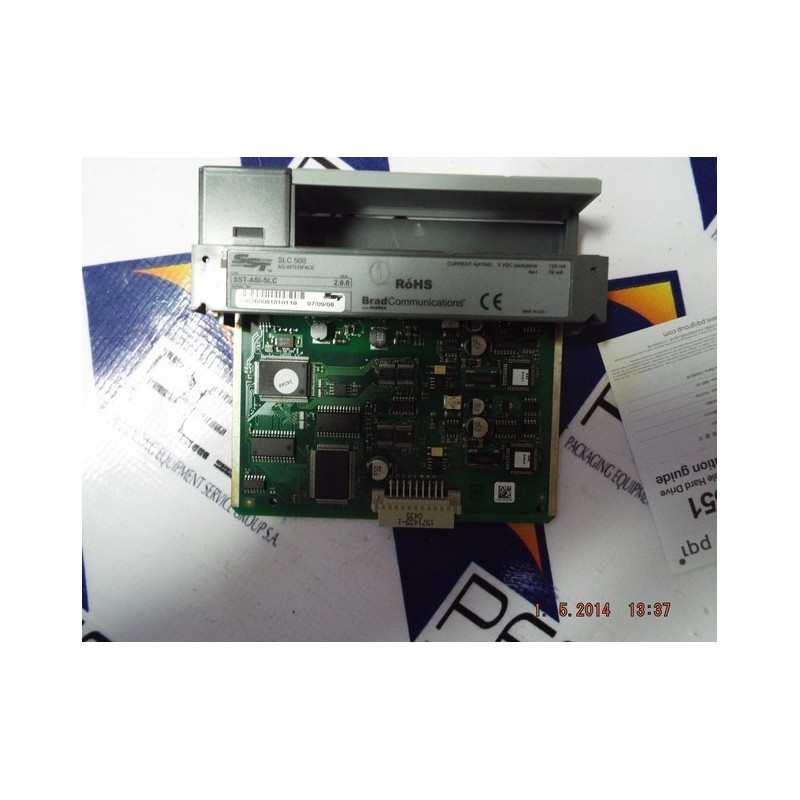

Brad SST SST-ASI-SLC Communication Module

The SST-ASI-SLC module enables seamless connectivity between SLC 500 PLCs and AS-i networks, supporting two independent AS-i channels. Each channel can manage up to 62 AS-i slave devices, allowing for a total of 124 devices. The module is compliant with AS-Interface specification 3.0, ensuring compatibility with a wide range of AS-i devices. It features flash memory for storing the AS-i master I/O configuration and integrates AS-i I/O data directly into the SLC processor’s I/O files, simplifying system setup and operation. The SST-ASI-SLC is designed for easy installation into the SLC backplane and supports configuration via RSLogix 500 software.

Features:

• AS-Interface Specification: Version 3.0
• Channels: 2 independent AS-i master channels
• Slave Capacity: Up to 62 slaves per channel (124 total)
• I/O Mapping:
  • I/O files: 32 words in, 32 words out
  • M0 and M1 files: 32 words in/out
• AS-i Cycle Time: 150 µsec * (number of slaves + 2)
• Backplane Current Consumption: 120 mA @ 5V DC
• Operating Temperature: 0 to +50°C
• Storage Temperature: -25 to +70°C
• Humidity: 5 to 95% RH
• Diagnostics: LEDs indicating overall status and channel-specific communication
• Compliance: RoHS compliant, CE marked, AS-i certified
• Configuration: Supports RSLogix™ 500; no additional configuration software required
• Installation: Fits into any slot in the local SLC chassis except slot 0
• Multiple Module Support: Multiple SST-ASI-SLC modules can be used in one SLC rack
• Ease of Use: Automatic address mode and identification of analog devices; single flat cable for power and data transmission
• Diagnostics: Built-in LEDs for easy status monitoring
• High-Speed Communication: Ensures deterministic communication for time-critical applications
• Applications: Suitable for various industrial automation applications, including conveyor controls, packaging machines, process control valves, and more
