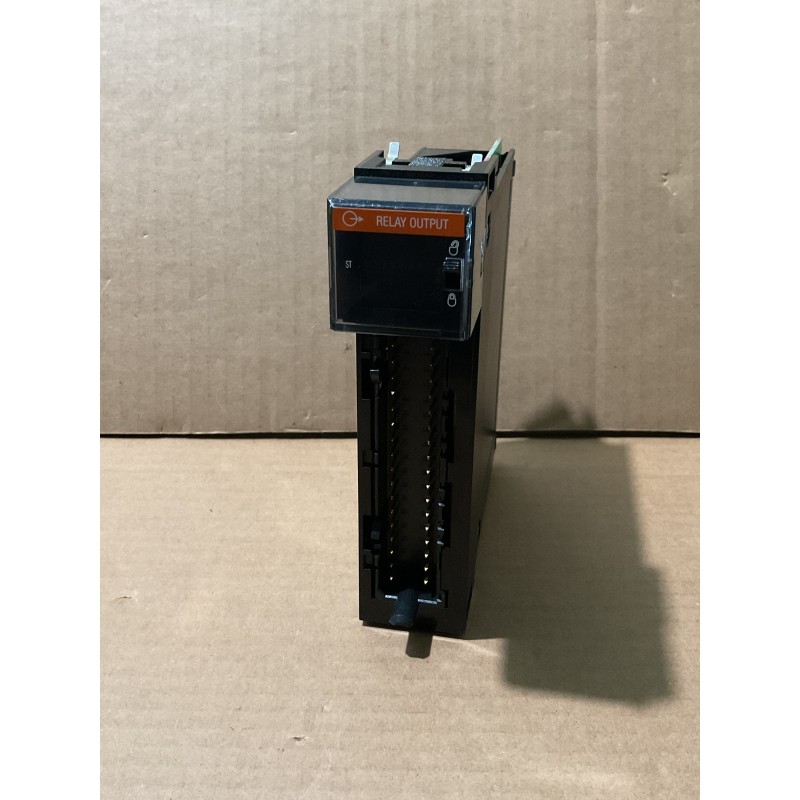

The Allen-Bradley 1756-OX8I Series A is a ControlLogix digital relay output module featuring eight individually isolated channels, each equipped with both normally open (NO) and normally closed (NC) contacts. It supports a wide range of AC and DC voltages, making it versatile for various industrial control applications.
Security policy
We offer many payment options to make your purchasing experience secure, easy and flexible.
Delivery policy
In-stock products: Same day shipping Mon. through Fri. by 6:00 pm EST.
Designed for the ControlLogix platform, the 1756-OX8I module provides eight isolated relay outputs, each capable of handling voltages from 10 to 265V AC or 5 to 150V DC. The isolation between channels enhances noise immunity and allows for independent operation of each output. The module requires a compatible removable terminal block (RTB), such as the 1756-TBCH or 1756-TBS6H, for field wiring connections. Its compact design facilitates easy integration into ControlLogix chassis, optimizing space within control panels.
Features:
Number of Outputs: 8 individually isolated channels
Contact Configuration: Each channel has 1 NO and 1 NC contact
Operating Voltage Range: 10–265V AC; 5–150V DC
Current Rating per Channel: Up to 2 A at 125/240V AC; 0.25 A at 125V DC
Isolation Voltage: 1000V AC between channels and backplane
Backplane Current Consumption: 350 mA at 5.1V DC; 2 mA at 24V DC
Power Dissipation: Approximately 3.5 W
Removable Terminal Block (RTB): Compatible with 1756-TBCH or 1756-TBS6H (to be ordered separately)
Indicators: LED status indicators for each output channel
