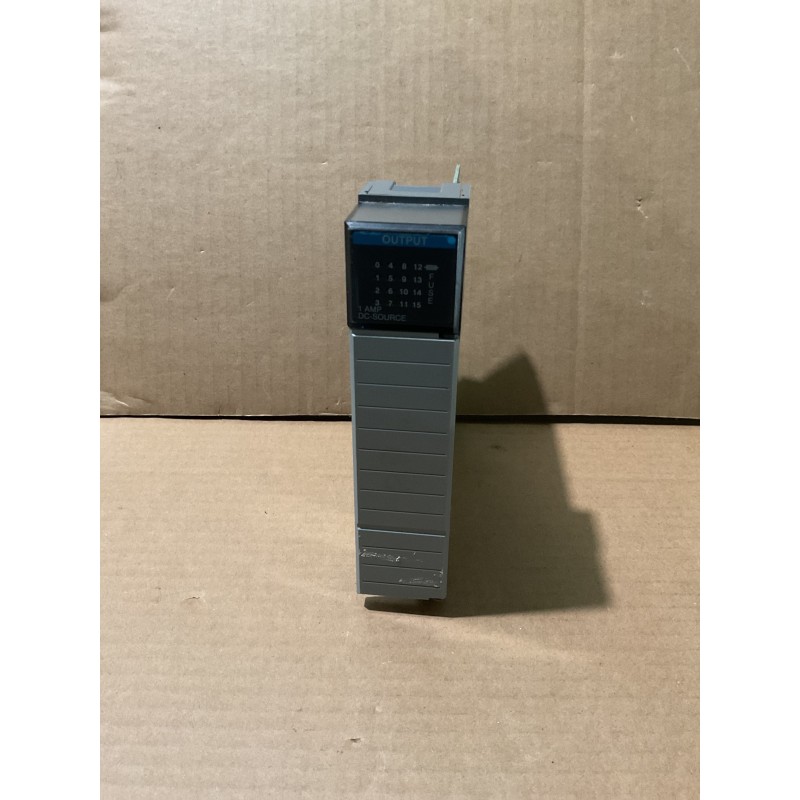

Allen-Bradley 1746-OBP16 SER C Output Module
The Allen-Bradley 1746-OBP16 Series C is a 16-point DC output module designed for the SLC 500 series, providing high-current sourcing outputs at 24V DC. It features integrated fuse protection and is suitable for various industrial automation applications.
Security policy
We offer many payment options to make your purchasing experience secure, easy and flexible.
Delivery policy
In-stock products: Same day shipping Mon. through Fri. by 6:00 pm EST.
Return policy
90-days money back guarantee
Description
The 1746-OBP16 module offers 16 sourcing DC outputs, each capable of handling a continuous current of up to 0.5 A at 30°C (86°F) and 0.25 A at 60°C (140°F). The module operates within a voltage range of 20.4 to 26.4V DC and includes integrated fuse protection to safeguard against short-circuit conditions. Designed for seamless integration into the SLC 500 system, it occupies a single slot in the chassis and supports both DIN rail and panel mounting. The module's robust construction ensures reliable performance in demanding industrial environments.
Features:
- Number of Outputs: 16 sourcing DC outputs
- Operating Voltage: 20.4 to 26.4V DC
- Continuous Current per Point: 0.5 A at 30°C (86°F); 0.25 A at 60°C (140°F)
- Surge Current per Point: 3.0 A for 10 ms, repeatable every 1 second at 30°C
- Signal Delay: ON delay of 0.1 ms; OFF delay of 1.0 ms
- Off-State Leakage Current: Maximum of 1 mA
- On-State Voltage Drop: Maximum of 1.2V at 0.5 A
- Fuse Protection: Integrated fuse per common; replacement fuse: Littelfuse 322010 or 332010 (Allen-Bradley Cat. No. 1746-F9)
- Mounting: DIN rail or panel mount
- Compatibility: Compatible with SLC 500 series controllers
Product Details
1746-OBP16 SER C
1746-OBP16
16 Items
New
Data sheet
- Condition
- Like new without box
