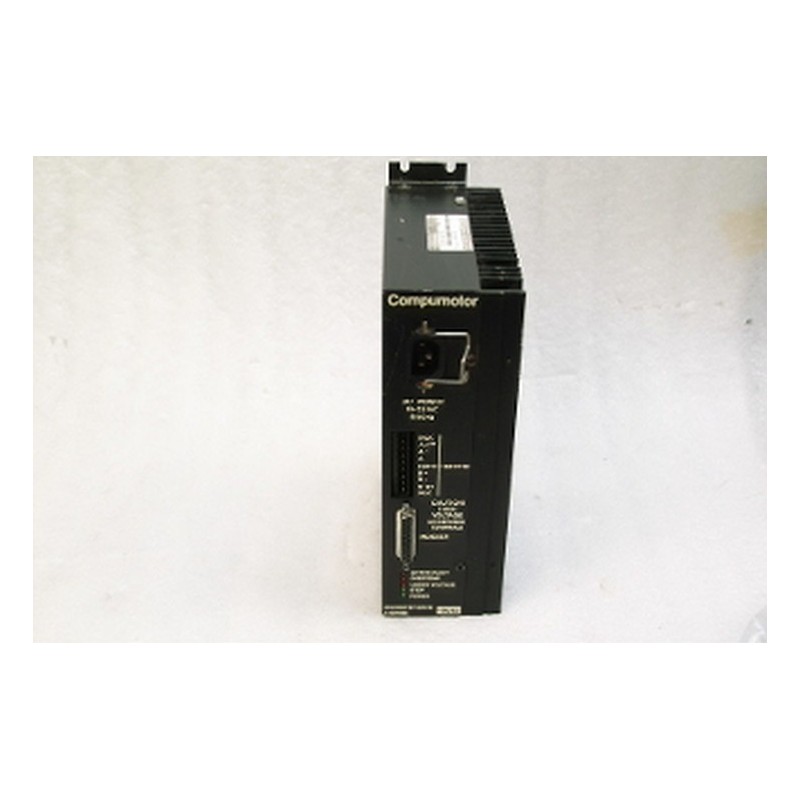

The SX83-62-S is part of Parker's SX Series, which integrates both drive and indexing functionalities into a single compact unit. It is engineered to control two-phase permanent magnet hybrid step motors, offering microstepping capabilities for smooth and accurate motion profiles. The drive operates with an input voltage of 90-130 VAC and provides a current output suitable for various motor sizes, including NEMA 34 frame motors. Key features include optically isolated step and direction inputs, fault outputs for diagnostics, and user-selectable motor resolutions up to 50,800 steps per revolution. The SX Series is known for its reliability and performance in demanding industrial environments.
Features:
- Integrated Drive/Indexer: Combines microstepping drive and indexing capabilities.
- Input Voltage: 90-130 VAC, 50/60 Hz.
- Motor Compatibility: Suitable for NEMA 34 frame stepper motors.
- Microstepping Resolution: User-selectable resolutions up to 50,800 steps/rev.
- Optically Isolated Inputs: Step and direction inputs for noise immunity.
- Fault Diagnostics: Provides fault outputs for system diagnostics.
- Protection Features: Includes short-circuit, over-temperature, and under-voltage protections.
- Communication Interface: RS-232C interface for programming and control.
