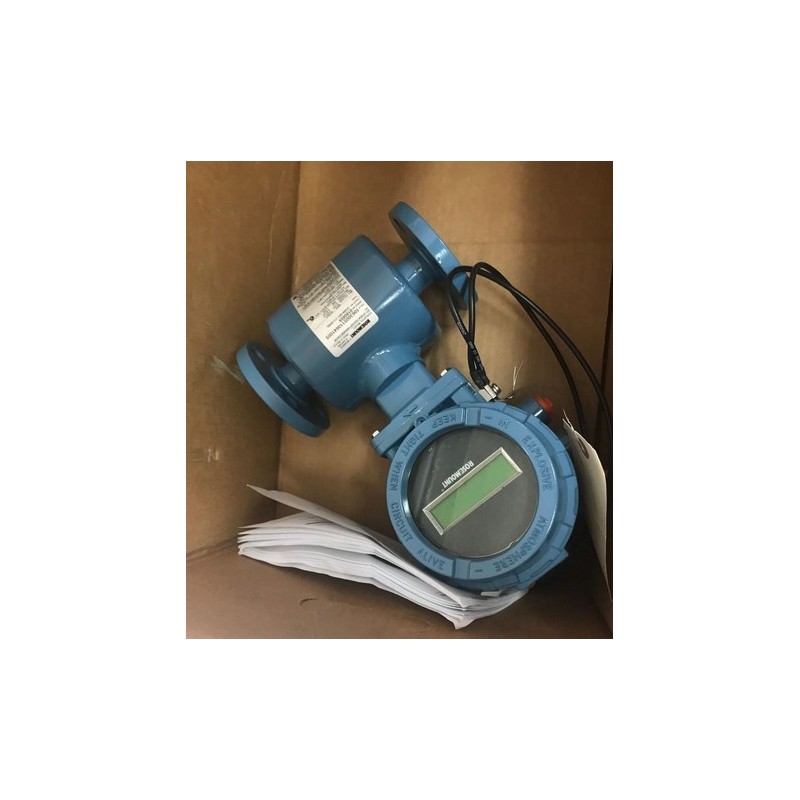

The Rosemount 8732EST2F1N0M5 is part of the 8732E series, renowned for delivering accurate flow measurements in conductive liquid applications. This transmitter features a dual-compartment housing that isolates electronics from environmental factors, enhancing durability and reliability. It offers advanced diagnostics and a through-the-glass Local Operator Interface (LOI), providing unparalleled process insight and ease of use. The device supports HART communication protocol, ensuring seamless integration into existing control systems. Its robust construction and superior performance make it suitable for a wide range of industries, including water and wastewater, chemical, and food and beverage.
Features:
- Mounting Style: Remote Mount
- Power Supply: 12 to 42 V DC
- Output: 4-20 mA with HART Protocol
- Conduit Entries: 1/2-inch NPT
- Safety Approvals: FM Class I Div 2 for Non-Flammable Fluids; CSA Class I Div 2 for Non-Flammable Fluids
- Display Options: Local Operator Interface (LOI)
- Diagnostics: Advanced diagnostics for process insight
- Enclosure Rating: NEMA 4X, IP66
