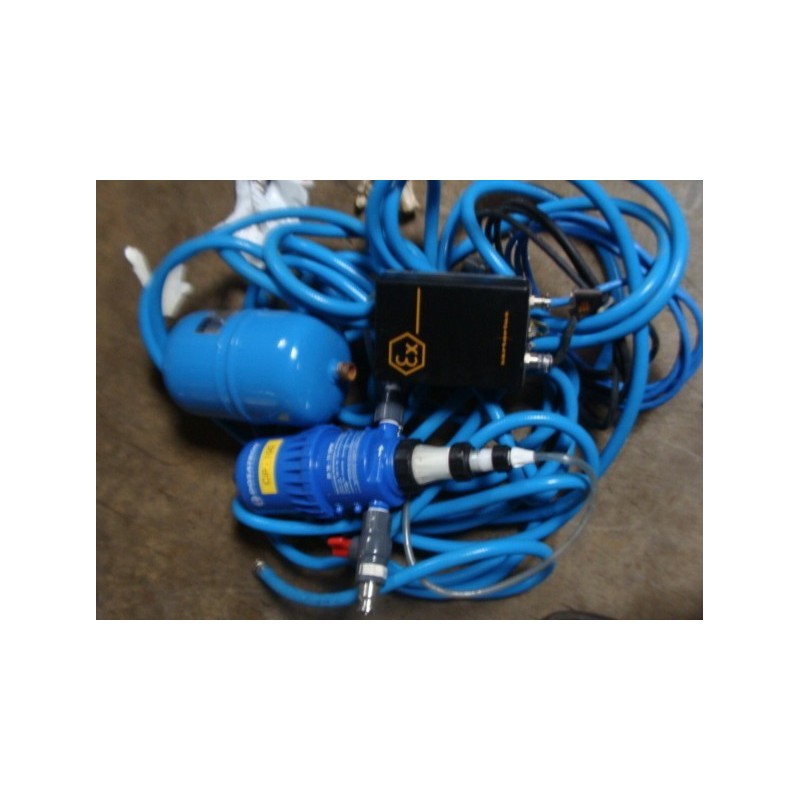

Dosatron DI 16-11 GPM Proportional Dosing Pump

The Dosatron DI 16-11 GPM operates without electricity, utilizing water flow as its power source. As water flows through the unit, it activates the pump mechanism, drawing the desired concentrate into the water stream at a consistent ratio. This ensures accurate and proportional dosing, regardless of variations in water pressure or flow rates. The DI 16-11 GPM model is capable of handling flow rates up to 11 gallons per minute (GPM) and offers adjustable dilution ratios ranging from 1:500 (0.2%) to 1:64 (1.6%), making it suitable for various dosing requirements. Its construction features durable materials resistant to a wide range of chemicals, ensuring longevity and reliability in diverse environments.

Features:

• Flow Rate Capacity: 0.02 to 11 GPM (0.08 to 42 LPM)
• Dilution Ratios: Adjustable from 1:500 (0.2%) to 1:64 (1.6%)
• Operating Pressure Range: 4.3 to 85 PSI (0.3 to 6 bar)
• Connection Size: 3/4" NPT
• Construction Materials: Chemical-resistant components for durability
• Dimensions: Approximately 16 inches x 7 inches
• Weight: Approximately 5 lbs
• No Electricity Required: Operates solely on water pressure
