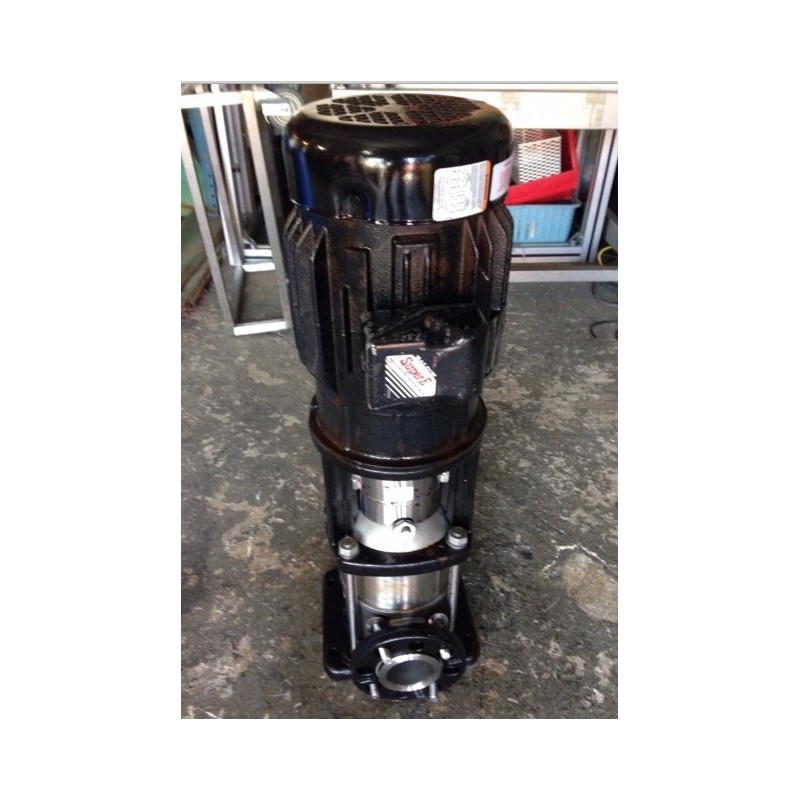

Grundfos CRN15-02 A-FGJ-G-E-HQQE Pump

The CRN15-02 A-FGJ-G-E-HQQE is part of Grundfos' renowned CRN series, known for their durability and efficiency. This model features a vertical, in-line design with suction and discharge ports on the same level, facilitating easy installation in horizontal one-pipe systems. All wetted parts are constructed from high-grade stainless steel (EN 1.4401), ensuring excellent corrosion resistance and suitability for handling a wide range of liquids. The pump is equipped with a balanced cartridge shaft seal (HQQE), enhancing reliability and simplifying maintenance. It operates at 5 HP with a rotational speed of 3461 RPM at 60 Hz, making it suitable for demanding industrial applications.

Features:

• Design: Vertical, multistage centrifugal pump with in-line suction and discharge ports.
• Materials: High-grade stainless steel (EN 1.4401) for all wetted parts.
• Shaft Seal: Balanced cartridge seal (HQQE) with silicon carbide components and EPDM O-rings.
• Motor Power: 5 HP.
• Speed: 3461 RPM at 60 Hz.
• Flange Connections: Compatible with DIN/ANSI/JIS standards.
• Applications: Suitable for boiler feeding systems, cooling and air-conditioning systems, fire fighting systems, industrial applications, pressure boosting, washing systems, water supply systems, and water treatment systems.
