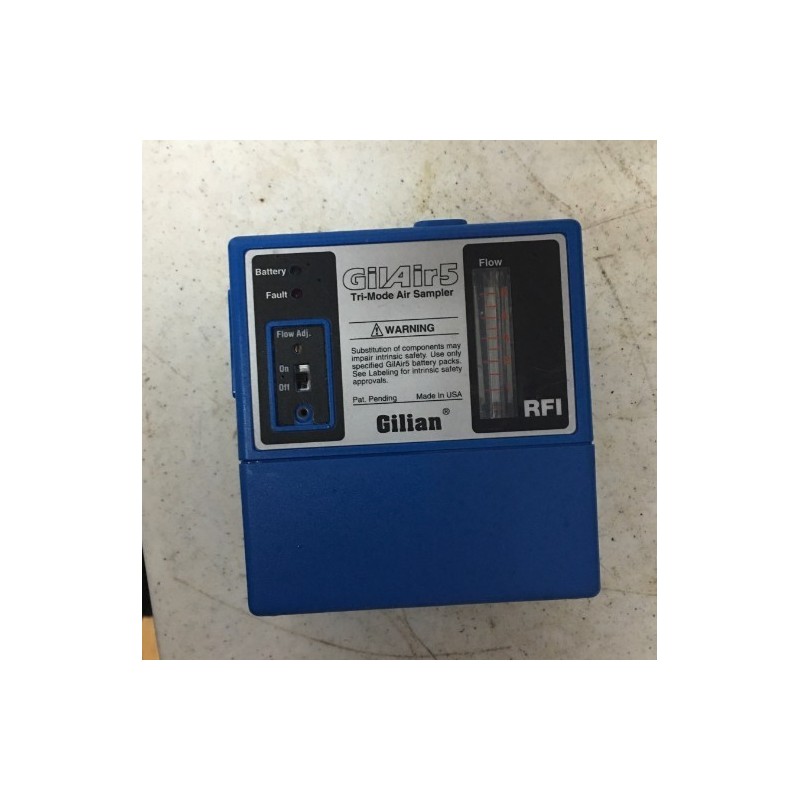

The GilAir-5 is engineered to provide consistent flow rates ranging from 1 to 5,000 cc/min, accommodating both high-flow (850-5,000 cc/min) and low-flow (1-750 cc/min) sampling needs. Its tri-mode functionality includes Basic, Clock, and Programmable models:
- Basic Model: User-friendly operation with straightforward controls.
- Clock Model: Features an elapsed-time clock display for monitoring sampling duration.
- Programmable Model: Allows for auto start-stop and delayed start times up to 9,999 minutes, enhancing flexibility in sampling schedules.
The sampler is equipped with a clear external filter housing for immediate visual inspection of the filter's condition, ensuring maintenance efficiency. Flow fault and battery test indicators provide real-time status updates, with the flow fault indicator activating if the unit operates outside ±5% of the set flow rate, and the battery test indicator confirming a minimum of 8 hours of operation over the specified range.
Features:
- Flow Range: 1-5,000 cc/min (total); 850-5,000 cc/min (high flow); 1-750 cc/min (low flow).
- Flow Control: Automatic constant flow maintained within ±5% of the set point.
- Battery: Rechargeable NiMH battery pack, ensuring extended operation.
- Indicators: Flow fault and battery test indicators for operational assurance.
- Models: Available in Basic, Clock, and Programmable versions to suit varying sampling requirements.
- Optional Low Flow Modules: Expand capabilities for sampling from 20-500 cc/min (constant low flow) and 1-750 cc/min (constant pressure).
