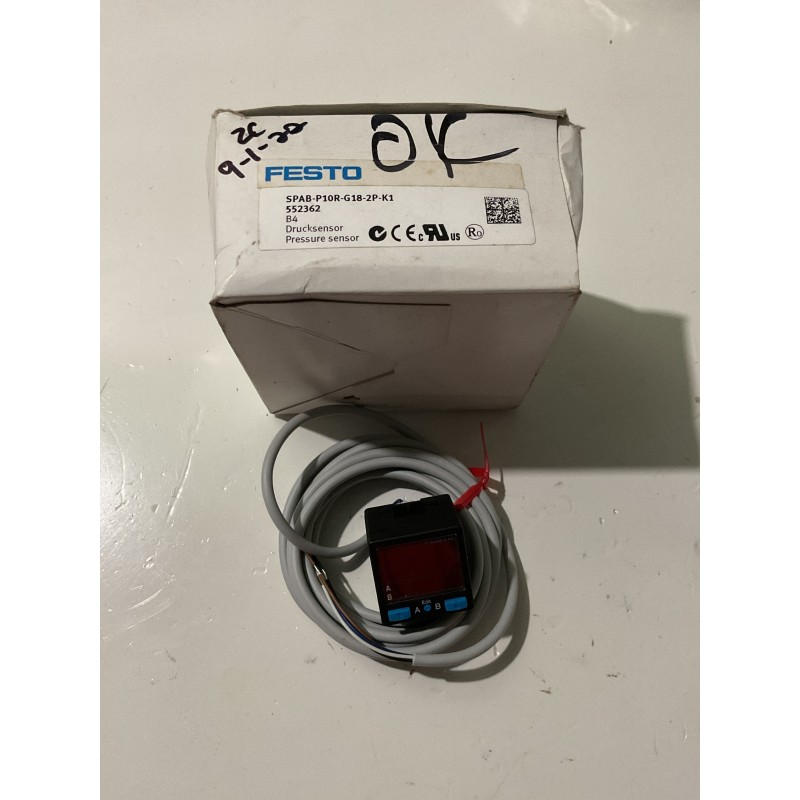

Festo SPAB-P10R-G18-2P-K1 Pressure Sensor

The SPAB-P10R-G18-2P-K1 pressure sensor utilizes a piezoresistive measurement method to accurately monitor relative pressure within a 0 to 10 bar range. It is equipped with a multi-colored illuminated LCD that provides clear visual feedback, and its switching functions are freely programmable to accommodate diverse application requirements. The sensor offers high repeatability with a switching output accuracy of ±0.2% FS and a display precision of ±2% FS. Designed for durability, it operates effectively within ambient temperatures of -10 to +50 °C and is constructed with reinforced ABS and PBT housing materials. The device includes a 2.5-meter cable for electrical connections and features a G1/8 male thread with an M5 female thread for pneumatic connections.

Features:

• Measurement range: 0 to 10 bar
• Dual PNP switching outputs
• Freely programmable switching functions
• High repeatability: ±0.2% FS
• Display precision: ±2% FS
• Multi-colored illuminated LCD display
• Operating voltage: 12 to 24 V DC
• Short-circuit protection
• Electrical connection via 2.5 m cable
• Pneumatic connection: G1/8 male thread and M5 female thread
• Ambient temperature range: -10 to +50 °C
• Housing materials: Reinforced ABS and PBT
• CE marked and RoHS compliant
