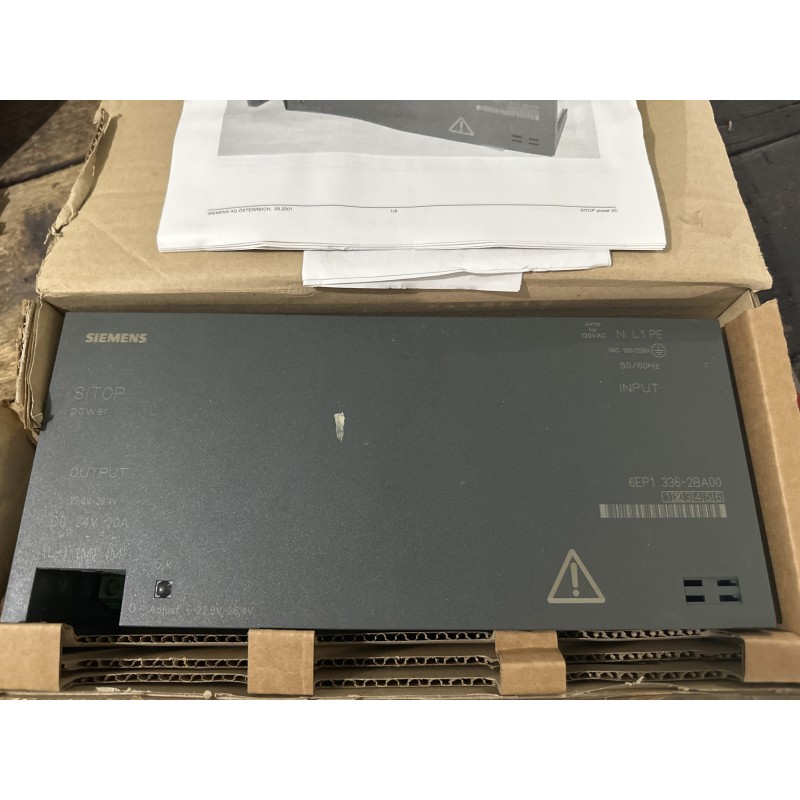

The 6EP1 336-2BA00 power supply is engineered to convert single-phase AC input into a stabilized DC output. It supports input voltage ranges of 120 V AC and 230 V AC, selectable via a jumper. With an output of 24 V DC at 20 A, it is ideal for powering industrial control systems, automation devices, and other industrial equipment.
This model includes built-in protections against overloads and short circuits, ensuring operational safety and reliability. Its compact design supports DIN rail mounting, making installation straightforward in control panels and enclosures.
Features:
- Type: Switched-mode power supply
- Input Voltage: 120/230 V AC (selectable)
- Input Voltage Range:
- Line Frequency: 50/60 Hz
- Input Current:
- 8 A at 120 V AC
- 3.3 A at 230 V AC
- Output Voltage: 24 V DC (adjustable: 22.8–26.4 V)
- Output Current: 20 A
- Efficiency: Approximately 87%
- Protections:
- Current limit at 22 A
- Overvoltage protection (EN 60950 compliant)
- Mounting: DIN rail (EN 60715 35x7.5/15)
- Certifications: CE, UL/cUL (UL 508), CSA
- Protection Rating: IP20
- Operating Temperature Range: 0°C to 55°C
- Humidity: Class 3K3 (EN 60721), non-condensing
