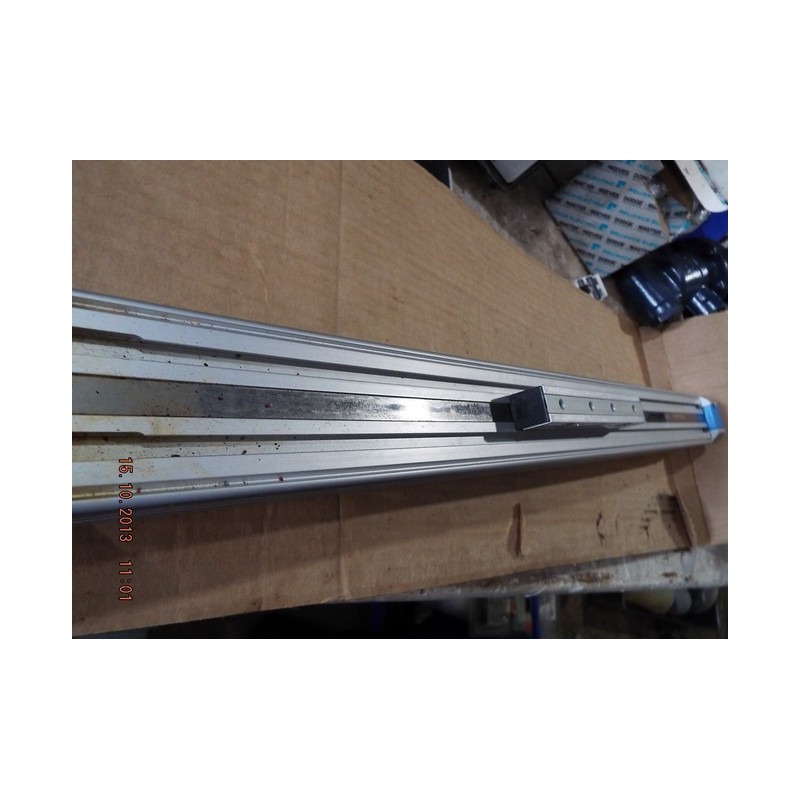

Festo DGP-32-400-PPV-A-B Pneumatic Linear

The Festo DGP-32-400-PPV-A-B is a rodless pneumatic linear drive designed for applications requiring precise linear motion. It operates on a double-acting mechanism, allowing for controlled movement in both directions. The drive features a 400 mm stroke length and a 32 mm piston diameter. Equipped with adjustable pneumatic cushioning (PPV) at both ends, it ensures smooth deceleration and reduced impact at the end positions. The positive-locking connection between the piston and driver enhances stability and accuracy. This model is suitable for proximity sensing and can be mounted in any position, offering flexibility in various industrial automation setups. The drive is compatible with compressed air operating at pressures between 2 to 8 bar and functions efficiently within ambient temperatures ranging from -10 to 60°C. Notably, this model has been discontinued and was available until 2013.

Features:

• Rodless design with a 400 mm stroke length
• 32 mm piston diameter
• Double-acting operation
• Adjustable pneumatic cushioning (PPV) at both ends
• Positive-locking connection between piston and driver
• Suitable for proximity sensing
• Flexible mounting positions
• Operating pressure: 2 to 8 bar
• Ambient temperature range: -10 to 60°C
