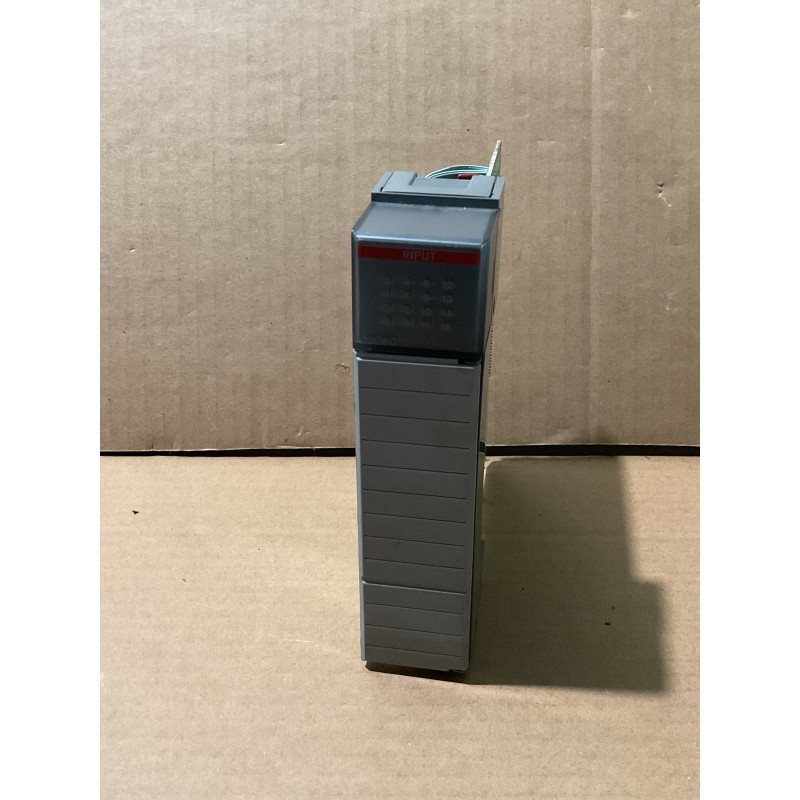

The Allen-Bradley 1746-IA16 Series C is a 16-channel digital AC input module designed for the SLC 500 programmable controller platform. It accepts input voltages ranging from 85 to 132 Volts AC and provides real-time status of input devices to the processor.
Security policy
We offer many payment options to make your purchasing experience secure, easy and flexible.
Delivery policy
In-stock products: Same day shipping Mon. through Fri. by 6:00 pm EST.
The 1746-IA16 module interfaces AC input devices, such as sensors and switches, with the SLC 500 system. Each of its 16 input points operates within an 85-132V AC range, suitable for standard 100/120V AC applications. The module features a removable terminal block for straightforward installation and maintenance. LED indicators on the front panel display the status of each input, facilitating easy monitoring and troubleshooting. With a backplane current draw of 85 mA at 5V DC, the 1746-IA16 ensures efficient power consumption within the system. Its compact design allows for seamless integration into existing SLC 500 chassis configurations.
Features:
Input Channels: 16
Voltage Range: 85-132V AC
Backplane Current Draw: 85 mA at 5V DC
Signal Delay: ON: 35 ms; OFF: 45 ms
Off-State Current: 2 mA
Removable Terminal Block: Yes
LED Status Indicators: Yes
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
