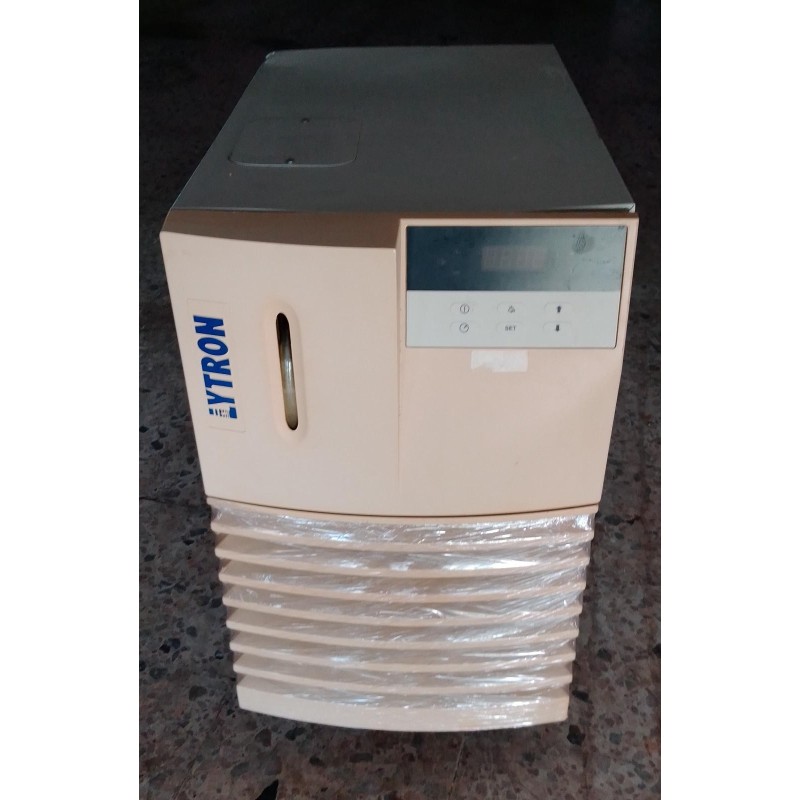

Lytron RC011G03BB2C007 Chiller

This chiller features a positive displacement brass pump capable of delivering a flow rate of 1.3 gallons per minute (GPM). It includes a 2-gallon reservoir and is compatible with water or ethylene glycol/water mixtures as coolant fluids. The unit operates on a single-phase 115V AC power supply, drawing approximately 14.3 amps at 60 Hz. Its compact design, with dimensions of approximately 26.5 inches in height, 14.8 inches in width, and 24.5 inches in depth, allows for easy integration into various setups.

Features:

• Cooling Capacity: 5,600 BTU/hr
• Pump Type: Positive displacement brass pump
• Flow Rate: 1.3 GPM
• Reservoir Capacity: 2 gallons
• Compatible Coolants: Water or ethylene glycol/water mixtures
• Power Requirements: 115V AC, 14.3 amps, 60 Hz, single-phase
• Dimensions: 26.5" H x 14.8" W x 24.5" D

Applications:

• Industrial Equipment Cooling: Maintains optimal temperatures for machinery and equipment.
• Laboratory Processes: Provides precise temperature control for experiments and processes.
• Laser Cooling: Suitable for dissipating heat generated by laser systems.
• Medical Equipment: Ensures stable operating temperatures for medical devices.
