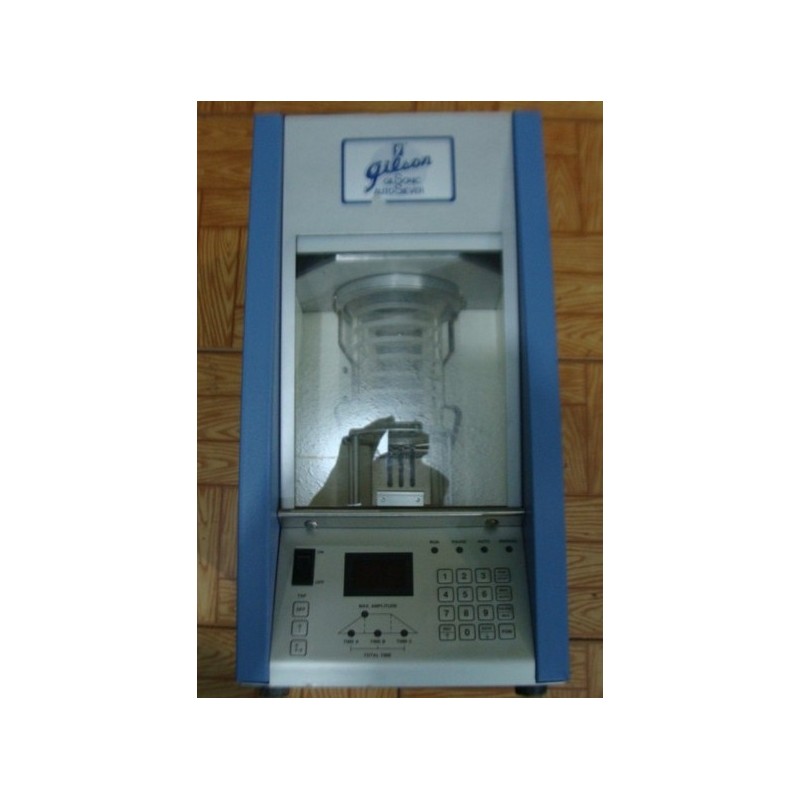

Gilsonic AutoSiever GA-1

The Gilsonic AutoSiever GA-1 utilizes sonic energy to oscillate an air column within a stack of sieves, effectively separating particles based on size. Operating at 3,600 sonic energy pulses per minute, it ensures efficient agitation and reorientation of particles, facilitating their passage through sieve apertures. Programmable horizontal and vertical tapping mechanisms prevent sieve blinding and material clumping, enhancing separation accuracy. The user-friendly control panel allows customization of testing profiles, with memory storage for up to ten programs, ensuring consistent and repeatable results across various materials. The enclosed design minimizes dust dispersion, promoting a safer laboratory environment.

Features:

• Particle Size Range: Capable of analyzing particles from No. 20 (850µm) to 5µm.
• Sonic Pulses: Operates at 3,600 pulses per minute for effective particle agitation.
• Programmable Tapping: Features adjustable horizontal and vertical tapping to prevent material clumping.
• Customizable Profiles: Stores up to ten user-defined testing profiles for consistent results.
• Enclosed Design: Reduces dust dispersion, enhancing laboratory safety.
• Sample Capacity: Suitable for sample sizes up to 20g, depending on material type and particle size.
• Test Duration: Typical test times range from 30 seconds to 5 minutes, adjustable up to 99.9 minutes.
• Sieve Capacity: Accommodates seven 3-inch diameter sieves in a fixed-height stack assembly.
• Construction: Powder-coated steel cabinet with a sliding acrylic door.
• Power Requirements: Available in 115V/60Hz or 230V/50Hz configurations.
