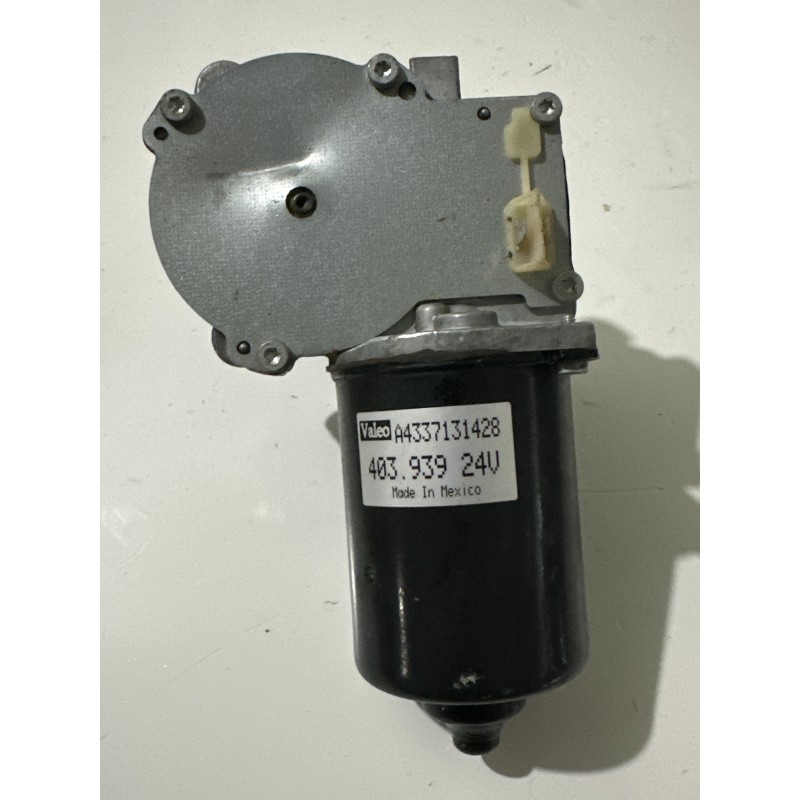

Valeo 403.939 DC Gear Motor

This gear motor operates at 24 volts DC, delivering a no-load speed of 40 RPM and a rated torque of 5 Nm. It features a right-angle gear configuration with a bolt hole circle diameter of 72 mm and a hole center distance of 62 mm. The shaft has a diameter of 10 mm, with an attachment piece measuring 12 mm in diameter and 33 mm in length. The round grooved shaft includes an M4 interior thread, facilitating secure connections in various mechanical setups. The motor is identified by the type designation SW2K.

Features:

• Operating Voltage: 24 V DC
• No-Load Speed: 40 RPM
• Rated Torque: 5 Nm
• Gear Configuration: Right-angle
• Bolt Hole Circle Diameter: 72 mm
• Hole Center Distance: 62 mm
• Shaft Diameter: 10 mm
• Attachment Piece Diameter: 12 mm
• Shaft Length: 33 mm
• Shaft Features: Round grooved with M4 interior thread
• Type Designation: SW2K
