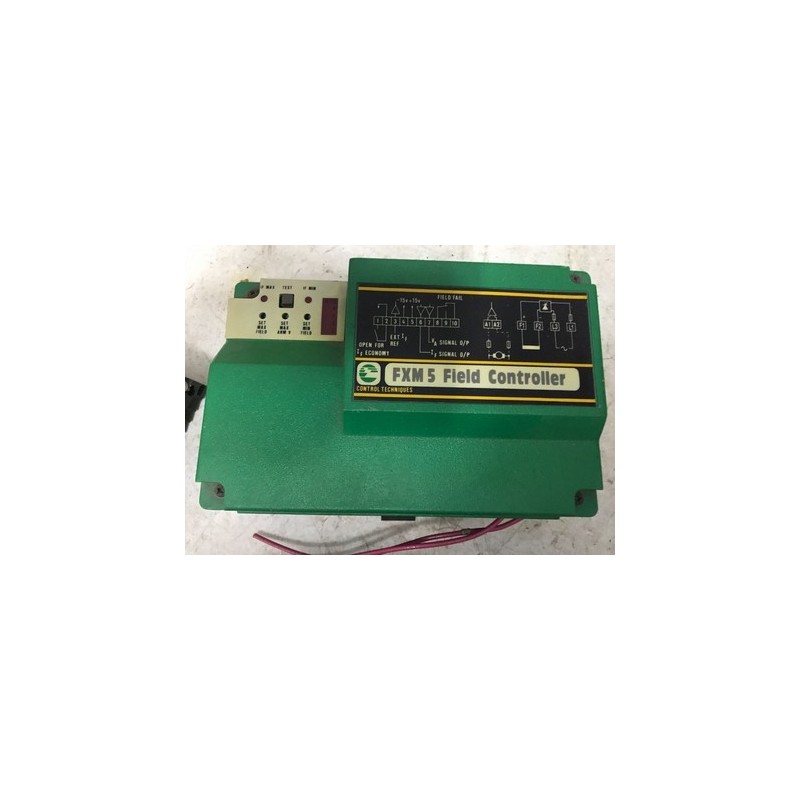

The FXM5 operates as a single-phase, controlled-thyristor rectifier with a control logic PCB. It can be configured to function in either half-controlled or full-controlled modes, depending on application requirements. The device supports both analog and digital control modes, providing flexibility in integration with various control systems. When paired with a Mentor II DC drive, the FXM5 can be directly controlled via drive parameters, allowing for comprehensive customization of field control to suit specific applications.
Features:
- Field Weakening: Automatically reduces field current to enable motor operation above base speed.
- Control Modes: Supports analog and digital control for integration with diverse systems.
- Configuration: Selectable half-controlled or full-controlled thyristor operation.
- Integration: Seamless compatibility with Mentor II DC drives for enhanced field control customization.
- Protection: Includes field-loss detection to safeguard motor operation.
Applications:
- Industrial Automation: Suitable for applications requiring precise speed control of DC motors.
- Manufacturing Processes: Ideal for machinery that operates above base motor speeds.
- Material Handling: Applicable in systems where variable speed control of DC motors is essential.
