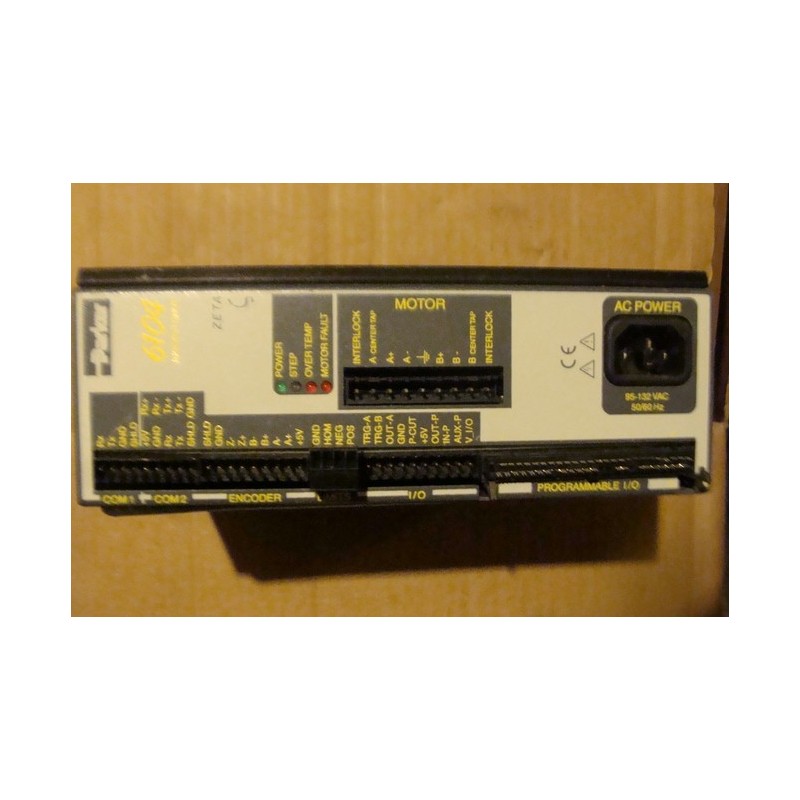

Parker ZETA6104 Microstepping Drive

The ZETA6104 combines a 4A microstepping drive with an integrated 6000 Series controller, providing programmable control with proprietary language support. It features active damping, stall detection (with encoder), position maintenance, high-speed registration, and user-defined scaling. The system supports electronic gearing/following modes, making it suitable for applications requiring coordinated motion. With a resolution of up to 50,800 steps per revolution, it ensures high precision in motion control tasks. The ZETA6104 is equipped with multiple inputs and outputs, including 19 inputs and 9 outputs, facilitating integration with various peripherals and sensors. Communication interfaces include RS-232C and RS-422/485, allowing for flexible connectivity options. The system is compatible with Motion Architect™, a Windows™-based development software, enhancing ease of programming and setup.

Features:

• Integrated 6000 Series controller and 4A microstepping drive
• Programmable control with proprietary language
• Active damping for improved motion performance
• Stall detection and position maintenance capabilities
• High-speed registration and user-defined scaling
• Electronic gearing/following modes
• Resolution up to 50,800 steps per revolution
• 19 inputs and 9 outputs for peripheral integration
• RS-232C and RS-422/485 communication interfaces
• Compatible with Motion Architect™ development software
