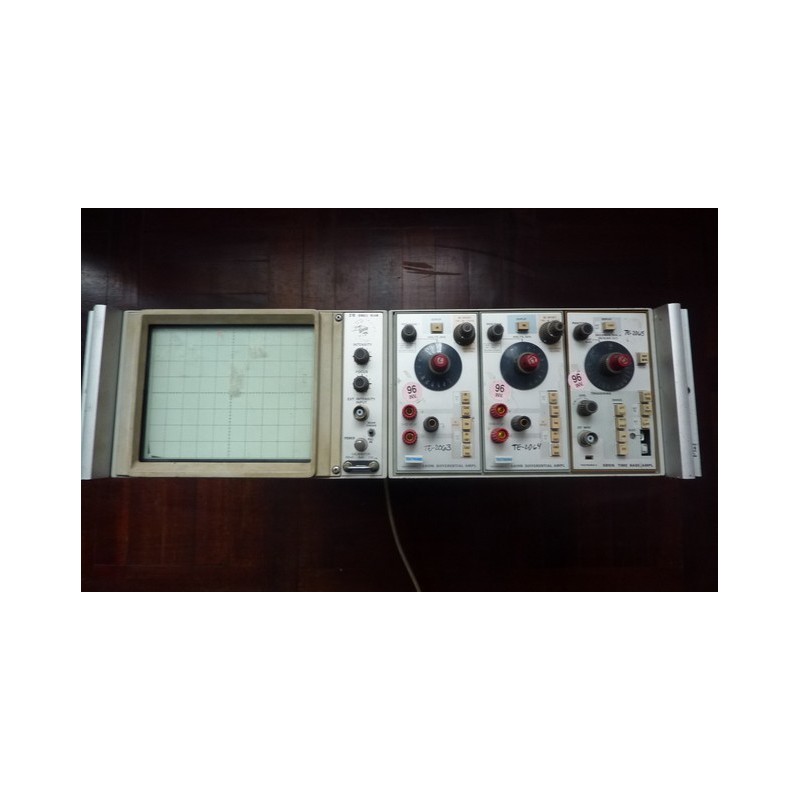

Tektronix 5103N Oscilloscope Mainframe

The 5103N serves as the foundational unit in the 5000-series oscilloscope systems, providing power and signal interfacing for plug-in modules and display units. It supports up to three plug-ins: two for vertical deflection and one for horizontal deflection, enabling multi-channel signal analysis. The mainframe includes regulated DC power supplies to ensure stable operation of connected modules. Its modular design allows users to tailor the oscilloscope's functionality to specific testing requirements by selecting appropriate plug-in and display modules.

Features:

• Modularity: Accommodates up to three plug-in modules for customized configurations.
• Compatibility: Interoperable with various Tektronix display modules (e.g., D10, D11, D12, D13) for different display capabilities.
• Bandwidth: Supports signal analysis up to 2 MHz, suitable for low-frequency applications.
• Power Supply: Integrated regulated DC power supplies for stable module operation.
• Display Options: Compatible with single-beam, dual-beam, and storage display modules for diverse visualization needs.

Applications:

• Educational Laboratories: Ideal for teaching basic oscilloscope operation and signal analysis.
• Electronics Testing: Suitable for analyzing low-frequency electronic circuits and signals.
• Research and Development: Useful in experimental setups requiring customizable signal observation.
