Omron XS2C-D4S1

XS2C-D4S1
Omron

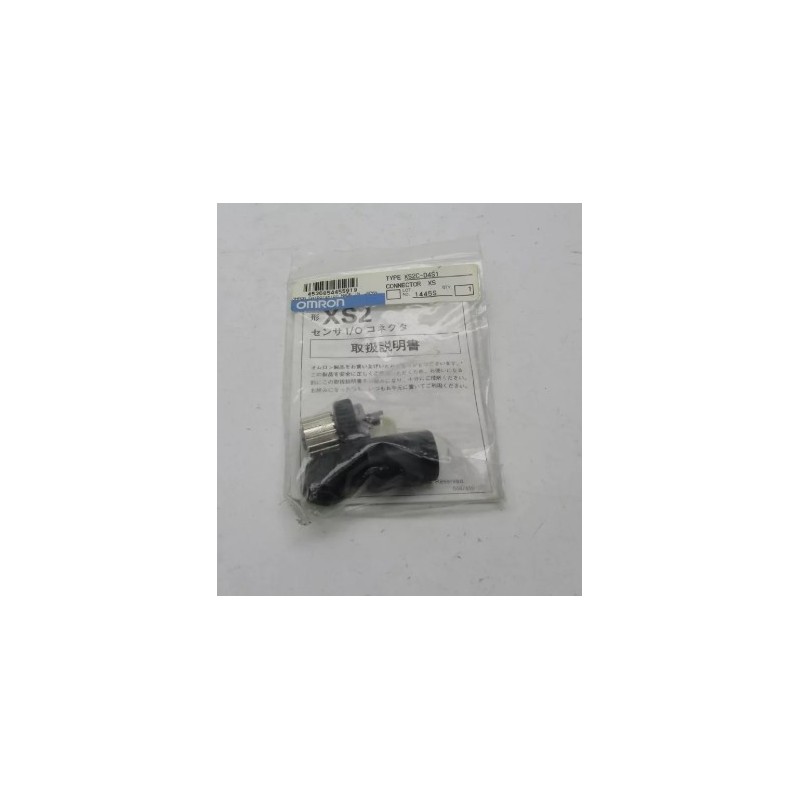

The Omron XS2C-D4S1 is a round, water-resistant connector designed for DC applications, featuring M12 threading and a straight, 4-pole socket configuration. It is suitable for cables with an outer diameter of 5 to 6 mm and employs a screw-on fastening method.

$20.00
Quantity
Last items in stock
1 Item

Ask about the product on WhatsApp
Make an Offer

Your Offer is sent.

Your Offer is accepted, please check your inbox.

Omron XS2C-D4S1
  • Use dot instead of comma

Loading

  Security policy

We offer many payment options to make your purchasing experience secure, easy and flexible.

  Delivery policy

In-stock products: Same day shipping Mon. through Fri. by 6:00 pm EST.

  Return policy

90-days money back guarantee

Description

The connector is rated for a voltage of 250 VDC and a current of up to 4 A. Its construction includes a polybutylene terephthalate (PBT) resin housing and gold-plated copper alloy contacts, ensuring durability and reliable conductivity. The XS2C-D4S1 is designed to meet IP67 standards, providing a high degree of protection against dust and water ingress, making it suitable for various industrial environments.

Key Specifications:

  • Type: Water-resistant connector
  • Application: DC
  • Number of Poles: 4
  • Plug/Socket: Socket
  • Lead Output Orientation: Straight
  • Fastening Method: M12 threads, screw-on
  • Rated Voltage: 250 VDC
  • Rated Current: 4 A
  • Contact Resistance: 40 mΩ max.
  • Applicable Cable Diameter: 5 to 6 mm
  • Operating Temperature Range: -25 to 70°C
  • Operating Humidity Range: 20 to 85%
  • Insulation Resistance: 1000 MΩ min. (at 500 VDC)
  • Dielectric Strength: 1,500 VAC for 1 minute (leakage current ≤1 mA)
  • Degree of Protection: IP67
Product Details
XS2C-D4S1
