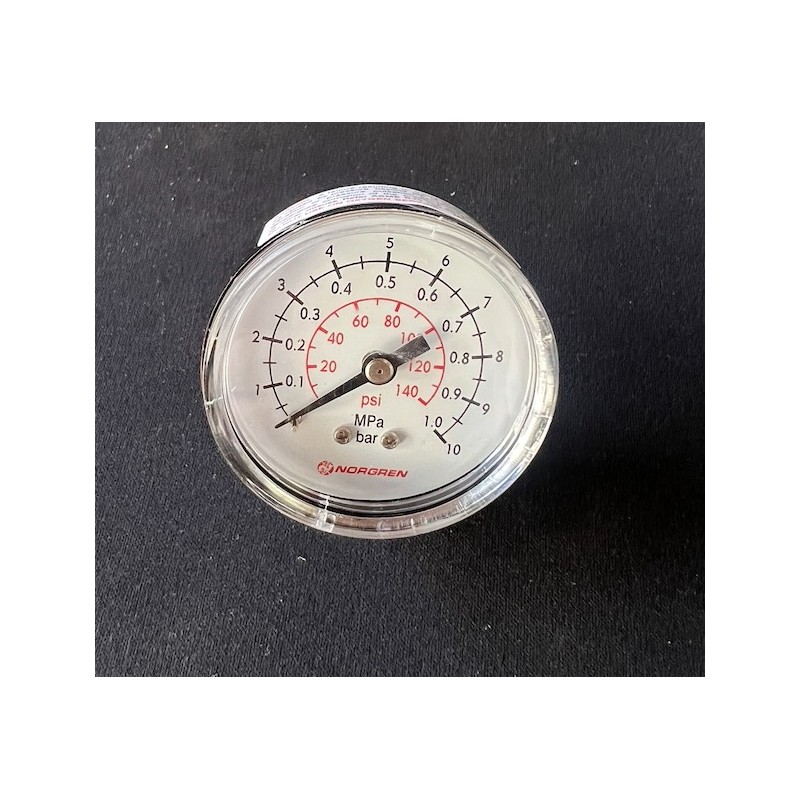

NORGREN 18-015-013

The 18-015-013 gauge from Norgren's 18-015 series is engineered to provide accurate pressure readings in compressed air applications. It features a 50 mm (2-inch) diameter dial with a triple-scale display, indicating pressure in bar (0 to 10 bar), psi (0 to 145 psi), and MPa. The gauge is equipped with a 1/8" ISO R male threaded port for easy installation. Its operating temperature ranges from -20 to 65 °C (-4 to 149 °F), and it can handle operating pressures up to 10 bar (145 psi). The device is suitable for use in various industrial environments, providing reliable performance for monitoring compressed air systems.

Features:

• Dial Size: 50 mm (2 inches)
• Pressure Range: 0 to 10 bar / 0 to 145 psi / 0 to 1 MPa
• Display: Triple-scale (bar, psi, MPa)
• Port Size: 1/8" ISO R male thread
• Operating Temperature: -20 to 65 °C (-4 to 149 °F)
• Maximum Operating Pressure: 10 bar (145 psi)
• Mounting Position: Center back
• Accuracy: ±2.5% of full scale
• Enclosure Rating: IP65
