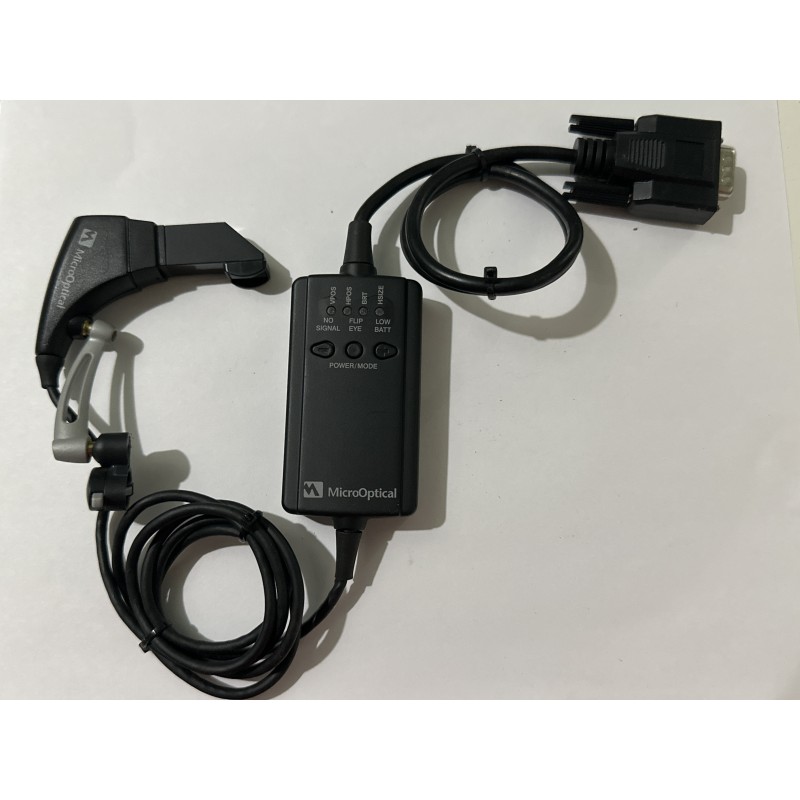

The SV-6 PC Viewer by MicroOptical is engineered to enhance mobile computing experiences by providing a crisp and clear visual display directly in the user's line of sight. Weighing approximately 35 grams, this compact device attaches easily to standard or safety eyewear using a quick mount and dismount system, allowing for comfortable and prolonged use. The viewer supports a resolution of 640x480 pixels and displays up to 262,144 colors, ensuring detailed and vibrant visuals. It is compatible with most computers and instruments that provide a VGA signal at 60 Hz, and it can accept higher input resolutions, such as 800x600, reformatting the information to fit the display without adding scroll bars. This feature is particularly beneficial when existing software does not conform to 640x480 resolution. The SV-6 includes accessories such as non-prescription eyewear, a mounting kit for alternative eyewear, a rechargeable lithium-ion battery, a battery charger, a belt-worn pouch, a VGA extension cable, an optical cloth, a carrying case, and a user's manual.
Features:
- Display Resolution: 640x480 pixels
- Color Depth: 18-bit (262,144 colors)
- Field of View: 20 degrees diagonal
- Weight: Approximately 35 grams
- Compatibility: Accepts VGA, SVGA, and XVGA inputs at 60-75 Hz
- Power Consumption: 2 watts
- Battery: 7.2V rechargeable lithium-ion, providing up to 5 hours of continuous use
- Mounting: Quick attach/detach system for standard or safety eyewear
- Focus Adjustment: Built-in mechanism for user-specific focus settings
